AEG/Telefunken M244

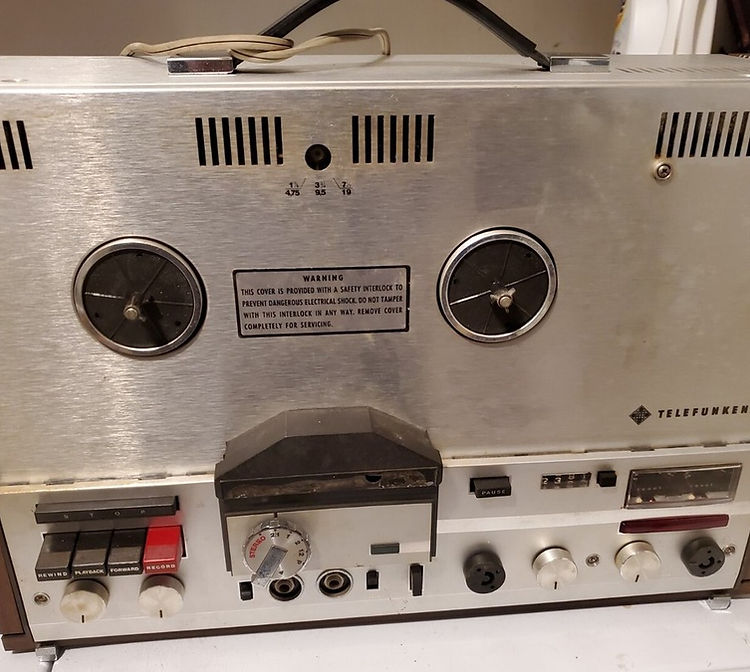

The AEG-Telefunken Magnetophon M244 (also known as Magnetophon 244 or M 244) is a early-to-mid 1960s consumer mono reel-to-reel tape recorder, produced approximately 1961–1965 (manufactured in West Germany by Telefunken, with AEG branding on some units due to shared distribution). It was a mid-range tabletop model in the Magnetophon line, designed for home use with integrated amplification and speakers. The M244 was tube-based, featuring a classic "magic eye" level indicator and push-button controls, making it a popular choice for domestic recording (radio, microphone) and playback during the early 1960s stereo transition period.

This was a 2-track (half-track) mono recorder (Zweispur), focused on reliability and sound quality rather than stereo or advanced features. It is often praised for its tube warmth and robust construction.

Key Technical Specifications

• Recording/Playback System — 2-track (half-track) mono; records/plays in one direction (tape flip for reverse); mono compatible; basic overdub possible.

• Tape Speeds — Two speeds:3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter (Spulen-Ø 18 cm; some listings note 22 cm max in variants like M24KL).

• Frequency Response (approximate, typical tolerances):At 7½ ips: 50 Hz – 15,000–16,000 Hz
  At 3¾ ips: 50 Hz – 10,000–12,000 Hz Respectable mono performance for early 1960s consumer deck.


• Wow & Flutter — Approximately 0.2–0.3% at 7½ ips (good for era's tube design).

• Signal-to-Noise Ratio — Around 45–50 dB (typical for tube mono).

• Heads — 2 heads: combined record/playback (permalloy) + erase head.

• Drive System — Single motor (synchronous or induction type); belt/idler mechanism; mechanical brakes; fast wind/rewind.

• Electronics — Tube-based (typically 4–5 tubes, including EL95 output pair and EM84 magic eye level indicator).

• Amplification & Speakers — Built-in mono amplifier (~2.5–3 W); internal elliptical loudspeaker(s) (often 6 × 3 inches or dual in some configs); output for external amp/speakers.

• Inputs —Microphone (low-level).
  Radio/line/phono (higher level).
  DIN-style connectors.


• Outputs —Line out.
  Internal speaker(s).
  Headphones possible.


• Features —Magic eye level indicator (EM84).
  Push-button controls.
  Portable/tabletop design with lid/handle.


• Power — AC mains (multi-voltage switchable: 110/127/200/220/240 V); consumption typical for tube (~60–100 W).

• Build & Dimensions — Tabletop metal case (often grey/silver); approx. ~380 × 165 × 300 mm (15 × 6.5 × 11.8 inches); weight ~10–12 kg.

• Manufacturing — West Germany (Telefunken/AEG-Telefunken); original price ~500–600 DM (early 1960s).

Performance & Legacy Context

The Magnetophon M244 was a solid mid-range mono consumer deck—offering two speeds, tube warmth, magic eye indication, and integrated amp/speaker(s) for convenience. It delivered good clarity and dynamics for radio dubbing, voice recording, or basic music at 7½ ips, with acceptable performance for its era. The tube electronics (including EL95 output) provided a classic, warm sound signature, though limited by mono and lower speeds compared to later stereo models.

Common issues today: Tube aging (preamp/output stages weak/noisy), electrolytic capacitor drying/leakage, belt/idler hardening, dirty heads, mechanical wear, and magic eye failure. Restorations are common (tube replacement, recap, alignment); service info scarce (mostly German originals via collector sites or forums like Vintage-Radio.net).

Compared to siblings:

• Magnetophon M77 — Stereo sibling (first full stereo model).

• M74/M75 — Mono predecessors (similar era).

• M105/M106 — Later mid-1960s transistor mono portables.

• M244 — Mid-range mono tabletop with tube electronics and magic eye (1961-era model).
