AEG/Telefunken Studio 22

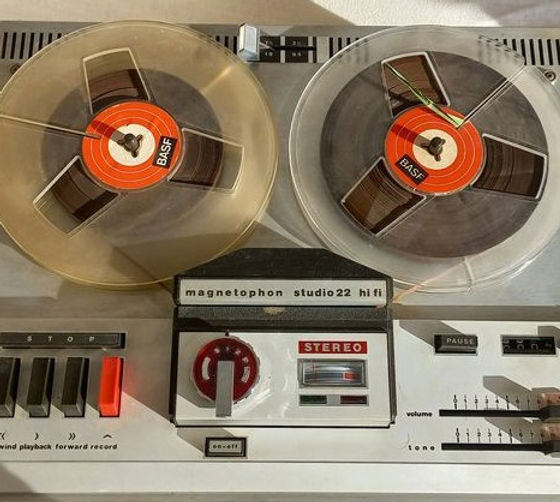

The AEG-Telefunken Magnetophon Studio 22 (also known as Magnetophon Studio 22 HiFi or simply Studio 22) is a early-to-mid 1970s consumer/professional stereo reel-to-reel tape recorder, produced approximately 1971–1974 (manufactured in Germany by Telefunken under the AEG-Telefunken brand). It was a mid-to-high-end model in the Magnetophon line, positioned as a "studio" or hi-fi oriented deck for serious home users or small studios, bridging consumer and semi-pro applications. The Studio 22 emphasized stereo recording/playback, three-head monitoring, and robust construction in a compact tabletop format.

This was a 2-track (half-track) stereo recorder (Zweispur-Stereo), optimized for high-fidelity domestic use with NAB equalization and good performance at professional speeds.

Key Technical Specifications

• Recording/Playback System — 2-track (half-track), 2-channel stereo/mono compatible; records and plays stereo on tracks 1-2 forward (no reverse pair without manual flip); mono compatible; sound-on-sound/multiplay overdub facilities.

• Tape Speeds — Two speeds:3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter (Spulen-Ø 18 cm).

• Frequency Response (approximate, typical tolerances; varies by tape/condition):At 7½ ips (19 cm/s): 40 Hz – 18,000 Hz (±3 dB)
  At 3¾ ips (9.5 cm/s): 40 Hz – 12,000–14,000 Hz Strong hi-fi extension at higher speed for a 1970s consumer deck.


• Wow & Flutter — Approximately 0.15% at 7½ ips (good stability for the era).

• Signal-to-Noise Ratio — Better than 52 dB at 7½ ips; better than 50 dB at 3¾ ips (respectable for transistor stereo).

• Heads — 3 heads: separate record, playback, and erase (permalloy; enables real-time off-tape monitoring/A-B comparison).

• Drive System — Likely three-motor (capstan + two reel motors) or robust single-motor with servo; belt/idler drive; mechanical brakes; fast wind/rewind.

• Electronics — Fully transistorized; printed circuit board amplifier.

• Amplification & Speakers — Built-in stereo amplifiers; single front-mounted elliptical speaker (in some configs; output ~3 W); line out for external hi-fi amp.

• Inputs —Microphone (low-level).
  Radio/line/phono (higher level).
  DIN-style connectors standard.


• Outputs —Line out (~1 V).
  Headphones (monitor).
  External amp/speakers.
  DIN-style.


• Features —Single illuminated VU meter.
  Sound-on-sound capability.
  Portable/tabletop design with lid/handle.


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V); consumption moderate.

• Build & Dimensions — Tabletop case (often silver/grey with wood accents); approx. ~450 × 350 × 180 mm (estimated); weight ~10–12 kg.

• Manufacturing — Germany (Telefunken/AEG-Telefunken).

Performance & Legacy Context

The Magnetophon Studio 22 was a capable mid-1970s stereo deck—offering three-head monitoring, two professional speeds (including usable 7½ ips for music), and integrated amplification for convenience. It delivered clear stereo imaging, good dynamics, and respectable extension at higher speeds when aligned and used with quality tape. The transistorized design provided low noise and reliable operation compared to tube predecessors.

Common issues today: Belt/idler degradation (goo/melting—kits needed), dried electrolytic capacitors, transistor aging, dirty heads (3-head alignment critical), worn idler tires/clutches, and mechanical wear. Restorations are common and effective—many examples perform well post-service. Service/user manuals scarce (mostly German originals via collector sites; some shared online).

Compared to siblings:

• Magnetophon M207/M230/M250 — Similar era mid-range stereo (often three-head/three-speed).

• Studio 44 — Higher-end sibling with refinements (e.g., better specs or features).

• M3000 — Later flagship consumer model.

• Studio 22 — Mid-to-high-range consumer "studio" deck with 3-head, two-speed stereo focus.
