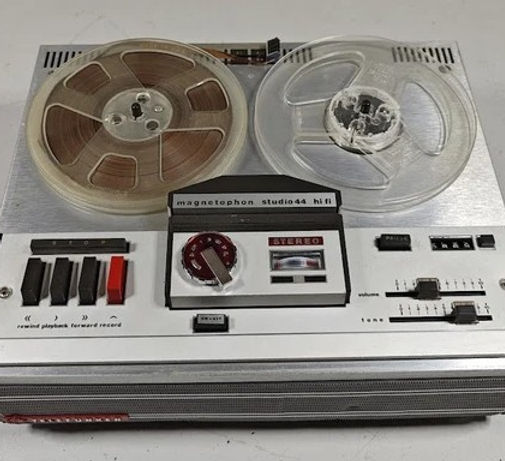

AEG/Telefunken Studio 44

The AEG-Telefunken Magnetophon Studio 44 (also known as Magnetophon Studio 44 HiFi or Studio 44 HiFi) is a early 1970s consumer stereo reel-to-reel tape recorder, produced approximately 1971–1974 (manufactured in Germany by Telefunken under the AEG-Telefunken brand). It was a mid-to-high-end model in the Magnetophon line, marketed as a "studio" or hi-fi oriented deck for serious home users, bridging consumer and semi-pro applications. The Studio 44 emphasized quarter-track stereo recording/playback, three-head monitoring, sound-on-sound overdubbing, and integrated amplification in a compact tabletop format. It was a successor/refinement to the Studio 22 (half-track variant), with the "44" denoting the quarter-track (vierspur) configuration.

This was a 4-track (quarter-track) stereo recorder with mono compatibility, designed for domestic recording (radio, microphone, phono/line inputs) and high-quality playback, featuring off-tape monitoring and a single front-mounted speaker in some configurations.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track), 2-channel stereo/mono compatible; records and plays stereo on tracks 1-4 forward and 3-2 reverse (manual tape flip required); mono compatible; sound-on-sound/multiplay overdub facilities.

• Tape Speeds — Two speeds:3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter (Spulen-Ø 18 cm).

• Frequency Response (approximate, typical tolerances; varies by tape/condition):At 7½ ips (19 cm/s): 40 Hz – 18,000 Hz (±3 dB)
  At 3¾ ips (9.5 cm/s): 40 Hz – 14,000 Hz (±3 dB) Good hi-fi extension at higher speed for a 1970s consumer deck.


• Wow & Flutter — 0.15% at 7½ ips (respectable stability for the era).

• Signal-to-Noise Ratio — Better than 52 dB at 7½ ips; better than 50 dB at 3¾ ips (strong for transistor stereo).

• Heads — 3 heads: separate record, playback, and erase (permalloy; enables real-time off-tape monitoring/A-B comparison).

• Drive System — Likely three-motor (capstan + two reel motors) or robust single-motor with servo; belt/idler drive; mechanical brakes; fast wind/rewind.

• Electronics — Fully transistorized (12 transistors reported); printed circuit board amplifier.

• Amplification & Speakers — Built-in stereo amplifiers; single front-mounted elliptical speaker (in some configs; output ~3 W); line out for external hi-fi amp.

• Inputs —Microphone & tuner: 0.15 mV at 5 kΩ.
  Pickup & tape: 70 mV at 2.2 MΩ.
  DIN-style connectors standard.


• Outputs —Line out.
  Headphones (monitor).
  External amp/speakers.
  DIN-style.


• Features —Single illuminated VU meter.
  Sound-on-sound capability.
  Portable/tabletop design with lid/handle.


• Power — AC mains (220–240 V standard; multi-voltage variants); consumption moderate.

• Build & Dimensions — Tabletop case (often silver/grey with wood accents); 395 × 160 × 310 mm (15.6 × 6.3 × 12.2 inches); weight 9.5 kg (20.9 lb).

• Manufacturing — Germany (Telefunken/AEG-Telefunken); original price approx. 698 DM.

Performance & Legacy Context

The Magnetophon Studio 44 was a capable mid-1970s stereo deck—offering three-head monitoring, two professional speeds (including usable 7½ ips for music), and integrated amplification for convenience. It delivered clear stereo imaging, good dynamics, and respectable extension at higher speeds when aligned and used with quality tape. The transistorized design (12 transistors) provided low noise and reliable operation compared to tube predecessors.

Common issues today: Belt/idler degradation (goo/melting—kits needed), dried electrolytic capacitors, transistor aging, dirty heads (3-head alignment critical), worn idler tires/clutches, and mechanical wear. Restorations are common and effective—many examples perform well post-service. Service/user manuals available (HiFi Engine—includes schematics and alignment; German/English versions).

Compared to siblings:

• Magnetophon Studio 22 — Half-track variant (similar era, often grouped together).

• M207/M230/M250 — Similar mid-range stereo with refinements.

• M3000 — Later flagship consumer model.

• Studio 44 — Mid-to-high-range consumer "studio" deck with 3-head, two-speed quarter-track stereo focus.
