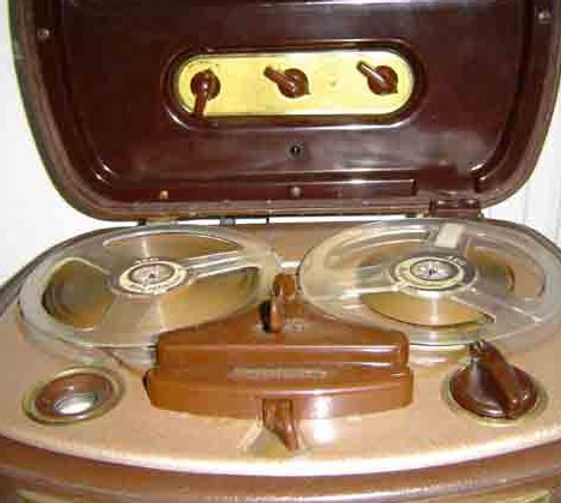

AEG/Telefunken KL-15

The AEG Telefunken KL-15 (also known simply as Magnetophon KL15) is a compact, portable mono tape recorder from the early 1960s, representing AEG's consumer-grade evolution of their pioneering Magnetophon technology. Produced around 1959–1962 in Germany, it targeted home users seeking reliable recording and playback in a lightweight package.

Key Technical Specifications

• Track System: Half-track mono recording/playback

• Tape Speeds: 1⅞ ips (4.75 cm/s) and 3¾ ips (9.5 cm/s)

• Maximum Reel Size: Up to 5¾ inches (15 cm, hence the "15" designation)

• Heads: 2 heads — record/playback (permalloy composition) and erase head; stacked/inline configuration

• Motors: Single motor drive with mechanical tape transport

• Frequency Response: 60 Hz to 16 kHz (±3 dB) at 3¾ ips

• Wow and Flutter: <0.3% at 3¾ ips; <0.4% at 1⅞ ips

• Signal-to-Noise Ratio: >40 dB (unweighted, 100:1 below normal level)

• Total Harmonic Distortion: <5% at playback output

• Electronics: Tube-based (valves: EF86, ECC81, ECC83, EM71A, EL95, plus selenium rectifier B250)

• Inputs: Microphone (2 mV at 2 MΩ), Radio/Aux (2 mV at 50 kΩ)

• Outputs: Preamp out (2 watts), extension speaker jack; headphone/line compatible

• Equalization: IEC standard

• Features:
  Horizontal fluorescent bar level indicator (replacing earlier magic eye on predecessor KL-75)
  Tone control (treble adjustment on later units)
  Separate volume and input controls
  Mechanical tape counter
  Rewind speed: ~1,800 ft of tape in 4¼ minutes

• Power Requirements: 220–240 V AC

• Dimensions: Approx. 360 x 430 x 185 mm (14¼" x 17" x 7¼")

• Weight: ~10.7 kg (23.5 lbs)

• Build: Tube electronics in lightweight Styron plastic case with metal/wood accents; some variants include internal 6" x 3" speaker and carry case (KL-15K model)

Variants and Context

• KL-15K: Portable version with built-in amplifier, 6x3" speaker, and carry case (21 lbs / 9.5 kg)

• KL-15T: Amplifier-equipped but no case/speaker (16¼ lbs / 7.4 kg)

• Successor to the KL-75, with improved reel capacity, level indication, and controls while maintaining affordability

The KL-15 was praised for its sensitive tape tension system, fine-gap heads for better high-frequency response, and portability, making it suitable for home recording, radio dubbing, and field use. Sound quality earned a solid 5/10 rating for its era, with good reliability (also 5/10) thanks to robust German engineering, though tube maintenance and part scarcity challenge modern ownership.

Service manuals note common needs like idler tire replacement and head demagnetization. Collectors value it as an accessible entry to vintage AEG/Telefunken mono decks, bridging their pro Magnetophon heritage with consumer designs.
