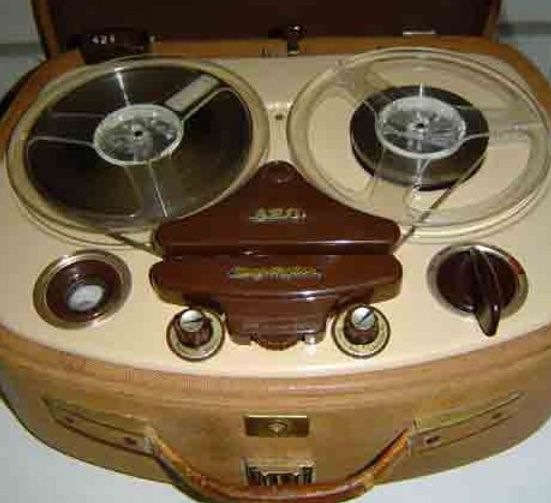

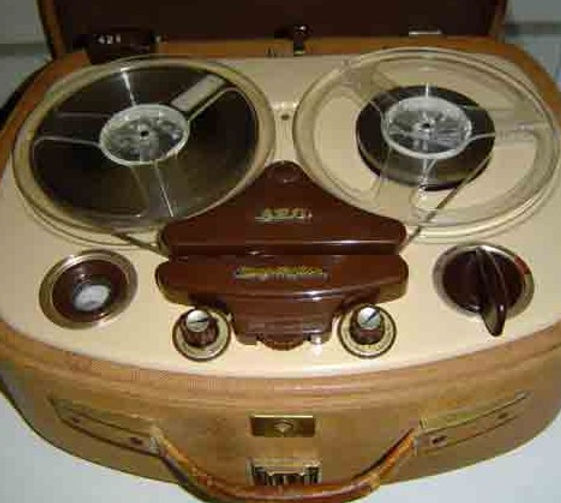

AEG/Telefunken KL-25

The AEG Telefunken KL-25 (also known as Magnetophon KL25) is a compact, portable mono tape recorder from the mid-1950s, bridging AEG's pioneering professional Magnetophon heritage with consumer accessibility. Produced around 1953–1957 in Germany, it was marketed under both AEG and Telefunken branding, often featuring distinctive "snake skin" textured cases in some variants.

Key Technical Specifications

• Track System: Half-track mono recording/playback

• Tape Speeds: 3¾ ips (9.5 cm/s); some sources note optional 7½ ips (19 cm/s) capability in later units

• Maximum Reel Size: Up to 7 inches (18 cm)

• Heads: 3 heads — erase, record, and playback (separate permalloy construction for improved fidelity)

• Motors: Single motor drive with mechanical transport and simple tension system

• Frequency Response: 50 Hz to 12 kHz (±3 dB) at 3¾ ips

• Wow and Flutter: Approximately 0.3–0.4% at 3¾ ips

• Signal-to-Noise Ratio: >38 dB

• Total Harmonic Distortion: <6% at normal levels

• Electronics: Tube-based amplification (5 valves typical: ECC81/12AT7 preamp, EL95 output, etc.)

• Inputs: Microphone (high impedance, ~1–2 mV), Radio/Aux (low level, ~2 mV)

• Outputs: Internal speaker (size unspecified, typically 5–6"), external speaker jack, line out

• Equalization: Standard IEC/OSCAR (predecessor to modern NAB)

• Features:
  Mechanical tape counter
  Basic level indication (magic eye or meter on some units)
  Tone control (limited treble adjustment)
  Auto-stop at tape end (mechanical)

• Power Requirements: 110–240 V AC (multi-voltage via transformer)

• Dimensions: 425 x 325 x 185 mm (16.7" x 12.8" x 7.3")

• Weight: Approximately 11–12 kg (24–26 lbs)

• Build: Tabletop/portable design in plastic or textured "snake skin" case with metal chassis; some models include carry handle

Variants and Context

• KL-25 Standard: Base model with internal speaker for standalone use

• Telefunken-branded: Identical internals, often with cosmetic differences (e.g., logos, case finish)

• Predecessor to KL-15; shares design DNA with contemporary AEG consumer recorders but adds separate record/playback heads for better monitoring

The KL-25 was designed for home recording from radio/microphone, language lessons, and archival use, earning praise for its portability and robust German build despite modest specs by later standards. Tube electronics provide warm sonics typical of the era, though modern users face capacitor replacement and head wear as common service items. It's collectible today as an early consumer three-head design from AEG/Telefunken, valued for historical significance over audiophile performance.
