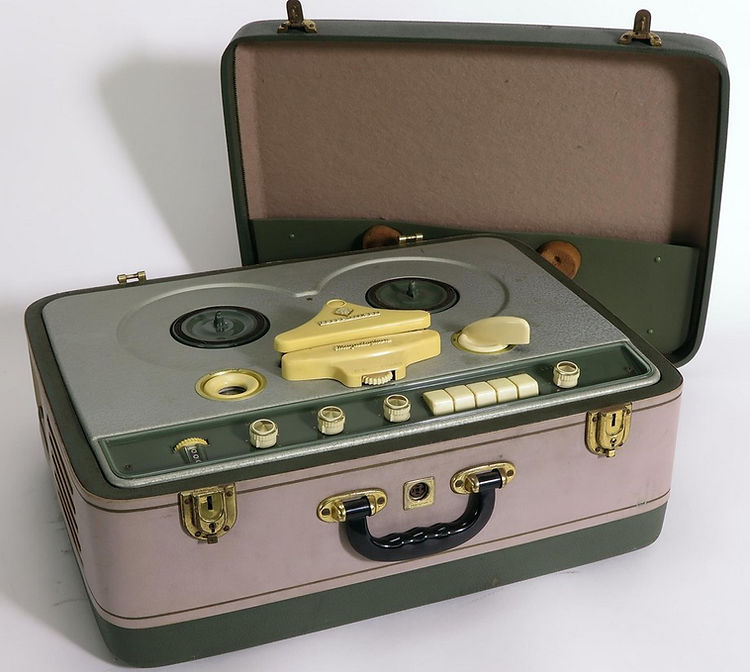

AEG/Telefunken KL-35

The AEG Telefunken KL-35 (Magnetophon KL35) is a portable stereo tape recorder from 1957–1958, notable for its "suitcase studio" design that integrated a compact mixer for amateur recording. Produced in Germany by Telefunken (under AEG's Magnetophon division), it targeted serious hobbyists wanting professional features in a transportable package.​

Key Technical Specifications

• Track System: Quarter-track stereo (4-track, 2-channel)

• Tape Speeds: 3¾ ips (9.5 cm/s) and 7½ ips (19 cm/s) dual speed

• Maximum Reel Size: Up to 7 inches (18 cm)

• Heads: 3 heads — erase, record, playback (permalloy for extended high-frequency response)

• Motors: Dual-motor transport (capstan and reel drive) with mechanical tension control

• Frequency Response: 50–12,000 Hz (±3 dB) at 7½ ips; narrower at 3¾ ips

• Wow and Flutter: <0.25% at 7½ ips

• Signal-to-Noise Ratio: >42 dB

• Total Harmonic Distortion: <4.5%

• Electronics: Tube amplification (valves: 2x EF86, 2x ECC83, ECC81, EM71A, EL84, plus rectifier AEGB300C75L)

• Inputs: Dual microphone channels (high impedance), line/radio/aux inputs with mixer controls

• Outputs: Dual speakers (2x 18x10.5 cm oval permanent-dynamic), external speaker/line outs, headphone jack

• Mixer Features: Built-in 2-channel mixer with separate level controls, pan, and "trick" effects (echo/reverb simulation)

• Equalization: IEC standard with tape-type compensation

• Power Requirements: 110/127/220/240 V AC multi-voltage

• Dimensions: 510 x 210 x 420 mm (20.1" x 8.3" x 16.5")

• Weight: 18 kg (39.7 lbs)

• Build: Heavy-duty transportable "suitcase" case with mixed materials (metal chassis, plastic/wood/leather/fabric exterior); includes carry handles

Context and Features

The KL-35 stood out for its integrated amateur studio concept: a fold-out mixer panel allowed multi-mic recording with basic effects, making it popular for home music, radio plays, and live events. It featured illuminated controls, mechanical auto-stop, and tape counter. Priced at 998 DM new (~$250 USD equivalent), it was premium consumer gear.

Sonically warm tube sound with good stereo imaging for the era, though limited by tape technology and mechanical tolerances. Modern collectors restore it for its historical value and unique mixer, but capacitor replacement and head alignment are routine maintenance needs.

Service documentation emphasizes demagnetization and tension calibration for optimal performance. A transitional design between AEG's early portables (KL-15/25) and later pro M-series, it's rare today and prized by vintage enthusiasts.
