AEG/Telefunken Magnetophon 106

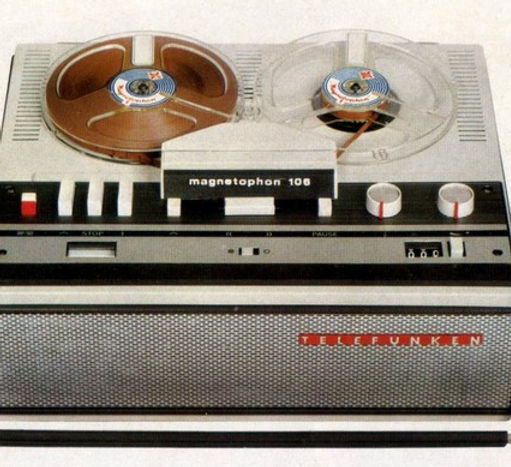

The AEG-Telefunken Magnetophon M106 (also known as Magnetophon 106 or M 106) is a mid-1960s consumer mono reel-to-reel tape recorder, produced approximately 1965–1968 (manufactured in Germany by Telefunken under the AEG-Telefunken brand following the 1967 merger). It belongs to the classic KL-series (Koffer-Lautsprecher = suitcase with loudspeaker) of portable Magnetophon models, designed as a compact, battery/AC-powered mono recorder for home, travel, dictation, or field use. The M106 was a direct sibling to the M105, but featured quarter-track (vierspur) mono recording instead of half-track, allowing longer recording time on the same tape length (double the runtime per side).

This was a quarter-track (4-track) mono recorder, focused on extended playtime and convenience rather than hi-fi stereo performance.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track) mono; records/plays in one direction (tape flip for reverse); mono compatible; basic overdub possible.

• Tape Speeds — Two speeds:1⅞ ips (4.75 cm/s)
  3¾ ips (9.5 cm/s)


• Reel Size — Up to 5 inches (13 cm) diameter standard (compact for portability; some units accept 7" with care).

• Frequency Response (approximate):At 9.5 cm/s (3¾ ips): 60 Hz – 12,000–13,000 Hz (±3 dB)
  At 4.75 cm/s (1⅞ ips): 60 Hz – 8,000–10,000 Hz Adequate for voice, speech, dictation, and basic music on small reels.


• Wow & Flutter — Approximately 0.25–0.35% weighted at 9.5 cm/s (typical for portable single-motor design).

• Signal-to-Noise Ratio — Better than 44–46 dB (standard for mid-1960s transistor mono portable).

• Heads — 2 heads: combined record/playback (permalloy) + erase head.

• Drive System — Single motor (synchronous or induction type); belt or idler mechanism; mechanical brakes; fast wind/rewind.

• Electronics — Fully transistorized (typically 8–10 transistors); printed circuit board amplifier.

• Amplification & Speakers — Built-in mono amplifier; internal permanent magnet dynamic loudspeaker (elliptical or round); output power ~0.5–1 W (personal monitoring).

• Inputs —Microphone (low-level).
  Radio/line/pick-up (higher level).
  DIN-style connectors.


• Outputs —Line out.
  Internal speaker.
  Headphones possible.


• Power — Batteries (typically 6 × 1.5 V = 9 V) or external AC adapter/charger; also car adapter compatible in some configs.

• Build & Dimensions — Compact portable metal/plastic case with carrying handle; approx. 280 × 80 × 280 mm (11 × 3.1 × 11 inches); weight ~3–3.5 kg (very lightweight and portable).

• Manufacturing — Germany (Telefunken/AEG-Telefunken); original price ~400–500 DM (mid-1960s).

Performance & Legacy Context

The Magnetophon M106 was a practical mid-1960s portable mono deck—offering two speeds, quarter-track mono for extended recording time, transistor reliability, and battery/AC flexibility for field, travel, or home use. It delivered decent clarity for voice/journalism, dictation, or basic music dubbing at 3¾ ips on small reels, with acceptable dynamics for its intended purpose. The quarter-track format doubled recording time compared to half-track siblings like the M105, making it popular for longer sessions.

Common issues today: Belt/idler hardening, dried electrolytic capacitors, transistor aging, dirty heads, mechanical wear (especially on portable transport), and battery compartment corrosion (if stored with old cells). Restorations are straightforward—many units revive well for vintage portable mono use. Service manuals available (Radiomuseum, Elektrotanya—German originals with schematics and alignment).

Compared to siblings:

• Magnetophon 300 series — Compact mono portables (M105 half-track, M106 quarter-track variant; M23/M302/M55 similar entry-level models).

• Higher models (e.g., M207/M230/M250) — Stereo, three-head, three-speed.

• M106 — Battery-powered quarter-track mono portable with two-speed focus.
