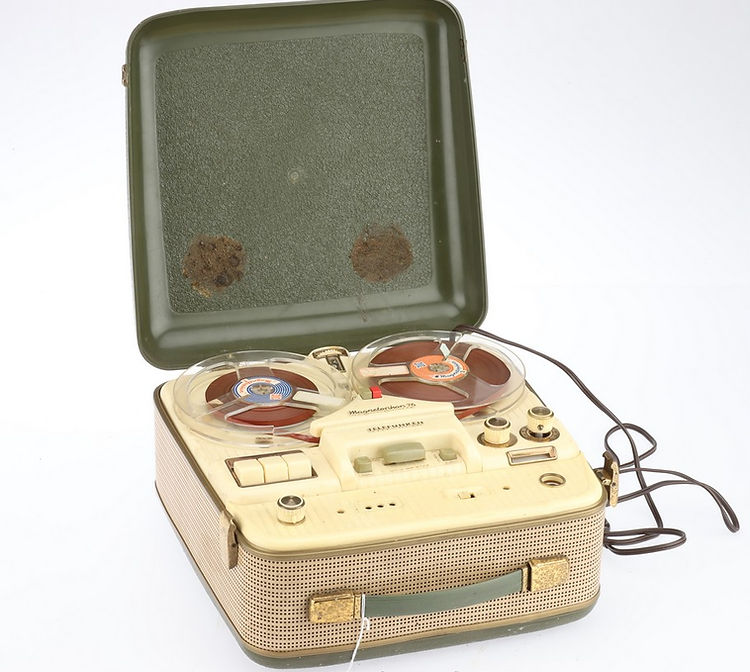

AEG/Telefunken Magnetophon 76

The AEG-Telefunken Magnetophon M76 (also known as Magnetophon 76 or M 76) is a late 1950s to early 1960s consumer mono reel-to-reel tape recorder, produced approximately 1959–1964 (manufactured in Germany by Telefunken, with AEG branding on some units due to shared distribution). It was a mid-range portable/tabletop model in the Magnetophon line, offered in two main variants: the 76 K (Koffer = suitcase/portable with built-in speaker and power amp) and 76 T (Tischmodell = table model without internal speaker, output stage only for external amp). The M76 was a tube-based mono recorder emphasizing simplicity, reliability, and decent sound quality for its era, with a magic eye level indicator and push-button controls.

This was a 2-track (half-track) mono recorder (Zweispur), focused on home recording (radio, microphone) and playback rather than stereo or advanced features.

Key Technical Specifications

• Recording/Playback System — 2-track (half-track) mono; records/plays in one direction (tape flip for reverse); mono compatible; basic overdub possible.

• Tape Speeds — Two speeds:3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s) (Electrical switching; 7½ ips for better fidelity, 3¾ ips for longer playtime).


• Reel Size — Up to 7 inches (18 cm) maximum diameter (some listings note 5" standard for portability).

• Frequency Response (approximate, typical tolerances):At 7½ ips: 50 Hz – 15,000–16,000 Hz
  At 3¾ ips: 50 Hz – 10,000–12,000 Hz Respectable mono performance for late 1950s/early 1960s consumer deck.


• Wow & Flutter — Approximately 0.2–0.3% at 7½ ips (good for era's tube design).

• Signal-to-Noise Ratio — Around 45–48 dB (typical for tube mono).

• Heads — 2 heads: combined record/playback (permalloy) + erase head.

• Drive System — Single motor (synchronous or induction type); belt/idler mechanism; mechanical brakes; fast wind/rewind.

• Electronics — Tube-based (typically 4–5 tubes: EF86 preamp, ECC83 driver, EL95 output, EM84 magic eye level indicator).

• Amplification & Speakers —76 K: Built-in mono amplifier (~2.5 W) + internal elliptical loudspeaker (6" × 3").
  76 T: Output stage only (for external amp/speakers).


• Inputs —Microphone (low-level).
  Radio/line/phono (higher level).
  DIN-style connectors.


• Outputs —Line out.
  Internal speaker (76 K only).
  Headphones possible.


• Features —Magic eye level indicator (EM84).
  Push-button controls.
  Portable/tabletop design with lid/handle (76 K suitcase-style).


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V); consumption typical for tube (~50–80 W).

• Build & Dimensions — Compact tabletop/suitcase case (often grey/silver); approx. 380 × 165 × 300 mm (15 × 6.5 × 11.8 inches); weight ~10–11 kg (76 K).

• Manufacturing — Germany (Telefunken/AEG-Telefunken); original price ~500–600 DM (mid-1960s).

Performance & Legacy Context

The Magnetophon M76 was a solid mid-range mono consumer deck—offering two speeds, tube warmth, magic eye indication, and integrated amp/speaker (76 K) for convenience. It delivered decent clarity and dynamics for radio dubbing, voice recording, or basic music at 7½ ips, with acceptable performance for its era. The tube electronics provided a classic sound signature, though limited by mono and lower speeds compared to later stereo models.

Common issues today: Tube aging (preamp/output stages weak/noisy), electrolytic capacitor drying/leakage, belt/idler hardening, dirty heads, mechanical wear, and magic eye failure. Restorations are common (tube replacement, recap, alignment); service info available (HiFi Engine, Elektrotanya—German schematics common).

Compared to siblings:

• Magnetophon M77 — Stereo sibling (first full stereo model).

• M74/M75 — Mono predecessors (similar era).

• M105/M106 — Later mid-1960s transistor mono portables.

• M76 — Mid-range mono tabletop/suitcase with tube electronics and magic eye.
