AEG/Telefunken Magnetophon M104

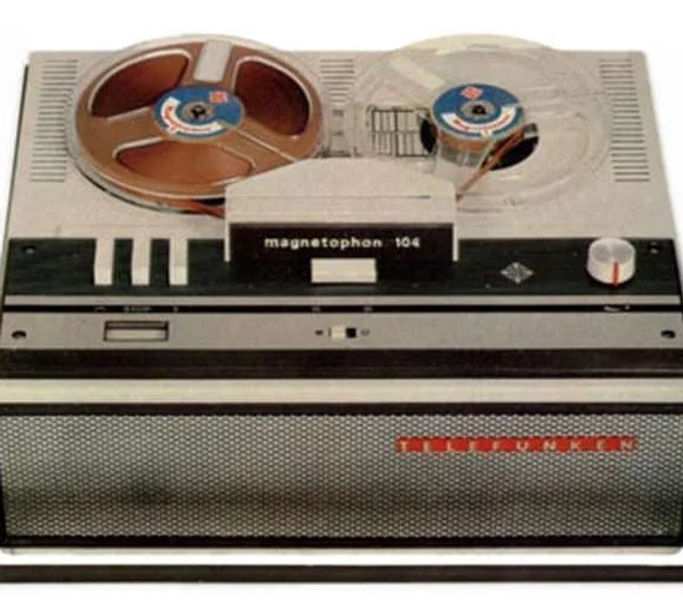

The AEG-Telefunken Magnetophon M104 (also known as Magnetophon 104 or Magnetophon 104 R) is a mid-1960s consumer mono reel-to-reel tape recorder, produced approximately 1964–1966 (manufactured in Germany by Telefunken, with AEG branding on some units due to shared distribution). It was a mid-range tabletop model in the Magnetophon line, designed as a compact, affordable mono recorder for home use (radio dubbing, microphone recording, phono/line input) and playback. The M104 was fully tube-based, featuring a magic eye level indicator and simple mono operation with integrated amplification and speaker for standalone convenience.

This was a 2-track (half-track) mono recorder (Zweispur), focused on ease of use and reliability rather than stereo or advanced hi-fi features.

Key Technical Specifications

• Recording/Playback System — 2-track (half-track) mono; records/plays in one direction (tape flip for reverse); mono compatible; basic overdub possible.

• Tape Speeds — Single speed:3¾ ips (9.5 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter (Spulen-Ø 18 cm in some listings; 15 cm standard).

• Frequency Response (approximate):At 9.5 cm/s: 60 Hz – 12,000–14,000 Hz (±3 dB) Adequate for voice, speech, and basic music on standard reels.


• Wow & Flutter — Approximately 0.25–0.35% weighted at 9.5 cm/s (typical for single-motor tube consumer design).

• Signal-to-Noise Ratio — Around 45–48 dB (standard for mid-1960s tube mono).

• Heads — 2 heads: combined record/playback (permalloy) + erase head.

• Drive System — Single motor (synchronous or induction type); belt/idler mechanism; mechanical brakes; fast wind/rewind.

• Electronics — Tube-based (4 tubes: EF86 preamp, ECC83 phase inverter/driver, EL95 output, EM84 magic eye level indicator).

• Amplification & Speakers — Built-in mono amplifier; internal elliptical loudspeaker (typically 5 × 3 inches); output power ~2–3 W.

• Inputs —Microphone (low-level).
  Radio/line/phono (higher level).
  DIN-style connectors.


• Outputs —Line out.
  Internal speaker.
  Headphones possible.


• Features —Magic eye level indicator (EM84).
  Basic transport controls.
  Portable/tabletop design with lid/handle.


• Power — AC mains (multi-voltage switchable: 110/127/200/220/240 V); consumption typical for tube (~50–80 W).

• Build & Dimensions — Tabletop metal case; 380 × 165 × 300 mm (15 × 6.5 × 11.8 inches); weight 11 kg (24 lb 4 oz).

• Manufacturing — Germany (Telefunken/AEG-Telefunken); original price ~400–500 DM (mid-1960s).

Performance & Legacy Context

The Magnetophon M104 was a practical mid-1960s mono consumer deck—offering tube warmth, magic eye indication, and integrated amp/speaker for convenience. It delivered decent clarity for radio dubbing, voice recording, or basic music at 3¾ ips, with acceptable dynamics for its price point. The tube electronics provided a classic sound signature, though limited by mono and single speed compared to later stereo models.

Common issues today: Tube aging (preamp/output stages weak/noisy), electrolytic capacitor drying/leakage, belt/idler hardening, dirty heads, mechanical wear, and magic eye failure. Restorations are common (tube replacement, recap, alignment); service info available (Radiomuseum, HiFi Engine—German schematics common).

Compared to siblings:

• Magnetophon M105/M106 — Similar era transistor mono portables (M105 half-track, M106 quarter-track).

• M55/M23/M302 — Mid-1960s mono portables (battery/AC focus).

• Higher models (M207/M230/M250) — Stereo, three-head, three-speed.

• M104 — Mid-range mono tabletop with tube electronics and magic eye.
