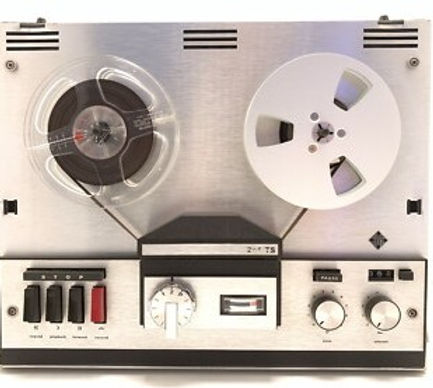

AEG/Telefunken Magnetophon M201

The AEG Telefunken Magnetophon M201 is a compact consumer-grade 4-track mono open-reel tape recorder from 1966–1970, produced by Telefunken under AEG's Magnetophon division in Germany. Fully transistorized as one of the last mono consumer decks before stereo dominance, it targeted home users with reliable single-speed performance and extended playtime via quarter-track operation.

Key Technical Specifications

• Track System: 4-track mono (vierspur-mono) for doubled playtime

• Tape Speeds: 3¾ ips (9.5 cm/s) fixed speed

• Maximum Reel Size: 7 inches (18 cm diameter)

• Heads: 2 heads — combo record/playback and erase head

• Motors: 1 synchronous induction motor (doubles as mains transformer)

• Frequency Response: 60–13,000 Hz

• Wow and Flutter: 0.2%

• Signal-to-Noise Ratio: Typical >45 dB for era

• Total Harmonic Distortion: <5%

• Electronics: Transistor amplification (6 transistors)

• Inputs: 3 — Microphone (0.2 mV/2 kΩ), Radio (0.2 mV/2 kΩ), Phono (200 mV/2.2 MΩ)

• Outputs: Radio (1 V/20 kΩ), Loudspeaker (2.5 W into 5 Ω elliptical permanent magnet driver)

• Equalization: IEC standard

• Features:
  Mechanical tape counter
  Multi-voltage AC power (110/127/220/240 V)
  Compact low-profile tabletop design

• Power Consumption: ~30 W

• Dimensions: 395 x 160 x 310 mm (15.6" x 6.3" x 12.2")

• Weight: 9.5 kg (21 lbs)

• Build: Grey/silver plastic/leather/canvas case; original price ~550 DM

Variants and Context

• M201 TS: Tape Select variant with enhanced tape optimization

• Parallel construction to AEG Magnetophon 201 (identical internals)

The M201 prioritized simplicity and economy, offering up to 12 hours total playtime per reel via 4-track operation while maintaining respectable fidelity for radio dubbing and voice recording. Its transistor design marked the shift from tube warmth to solid-state reliability in consumer decks. Modern examples need belt/idler replacement and head cleaning but remain robust.

Successor to Magnetophon 200, predecessor to stereo M203/M300 series—collectible today as an accessible late-mono entry representing AEG/Telefunken's final consumer mono phase before full stereo adoption.
