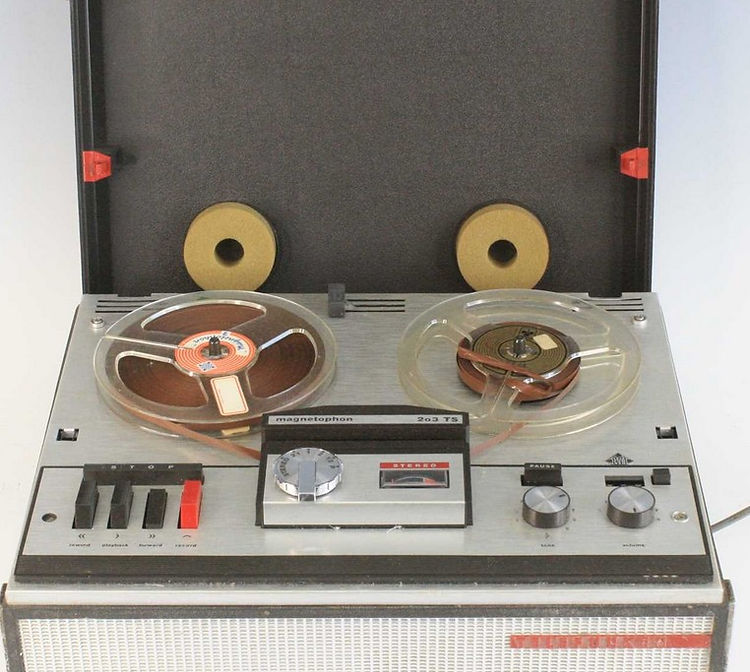

AEG/Telefunken Magnetophon M203

The AEG-Telefunken Magnetophon M203 (also known as Magnetophon 203 or M 203) is a mid-1960s consumer stereo reel-to-reel tape recorder, produced approximately 1966–1970 (manufactured in Germany by Telefunken under AEG-Telefunken after the 1967 merger of AEG and Telefunken). It was a mid-range model in Telefunken's Magnetophon line, positioned as an affordable, fully transistorized quarter-track stereo recorder for home hi-fi enthusiasts. The M203 emphasized ease of use, built-in amplification, and respectable sound quality for the era, with a "de Luxe" variant offering minor cosmetic or feature enhancements.

This was a 4-track (quarter-track) stereo machine with mono compatibility, designed for domestic recording (radio, microphone, phono) and playback. It featured a single synchronous motor driving both capstan and reels, a compact portable design, and integrated mono amplifier/speaker for standalone operation.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track), 2-channel stereo/mono compatible; records and plays stereo on tracks 1-4 forward and 3-2 reverse (manual tape flip required); mono compatible; basic overdub/sound-on-sound possible.

• Tape Speeds — Two speeds:1⅞ ips (4.75 cm/s)
  3¾ ips (9.5 cm/s) (No 7½ ips; focused on longer recording time and convenience.)


• Reel Size — Up to 7 inches (18 cm) maximum diameter.

• Frequency Response (approximate, typical tolerances; varies by tape/condition):At 9.5 cm/s (3¾ ips): 50 Hz – 14,000–15,000 Hz
  At 4.75 cm/s (1⅞ ips): 50 Hz – 10,000 Hz Respectable for mid-1960s consumer stereo at lower speeds.


• Wow & Flutter — Approximately 0.2–0.3% at 9.5 cm/s (typical for single-motor design).

• Signal-to-Noise Ratio — Around 45–50 dB (standard for early transistor era).

• Heads — 2 heads: 1 × combined record/playback (permalloy) + 1 × erase head.

• Drive System — Single synchronous motor (serves as both capstan and reel drive; also functions as mains transformer in some designs); belt or idler drive; mechanical brakes; fast wind/rewind.

• Electronics — Fully transistorized; printed circuit board amplifier.

• Amplification & Speakers — Built-in mono amplifier (~few watts); single internal elliptical loudspeaker (typically 5 × 3 inches); stereo playback requires external amplifier (via line out).

• Inputs —Microphone (low-level).
  Radio/line/phono (higher level).
  DIN-style connectors.


• Outputs —Line out for external amp.
  Headphones possible.
  Internal speaker.


• Features —Single VU meter or level indicator.
  Basic transport controls.
  Portable/tabletop design with lid/handle.


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V); consumption moderate.

• Build & Dimensions — Tabletop case (often grey/silver with wood accents); approx. 395 × 160 × 310 mm (15.6 × 6.3 × 12.2 inches); weight ~8–10 kg.

• Manufacturing — Germany (Telefunken/AEG-Telefunken).

Performance & Legacy Context

The Magnetophon M203 was a practical mid-1960s consumer deck—offering quarter-track stereo, transistor reliability, and built-in mono playback for convenience. It delivered decent clarity and dynamics at 3¾ ips for radio dubbing or home recording, with tube-like warmth from early transistors. Stereo required external amplification, limiting standalone hi-fi use compared to later models.

Common issues today: Belt/idler degradation (goo/melting—kits needed), dried electrolytic capacitors, transistor aging, dirty heads (alignment critical), worn idler tires/clutches, and mechanical wear. Restorations are straightforward—many units revive well for vintage charm. Service manuals available (HiFi Engine—English/German versions; schematics and alignment info).

Compared to siblings:

• Magnetophon 204 — Similar era, often 4-track with refinements.

• Magnetophon 300 series — Later 1960s models with better specs.

• M203 — Mid-range consumer portable (2-head, single motor, 3¾/1⅞ ips focus).
