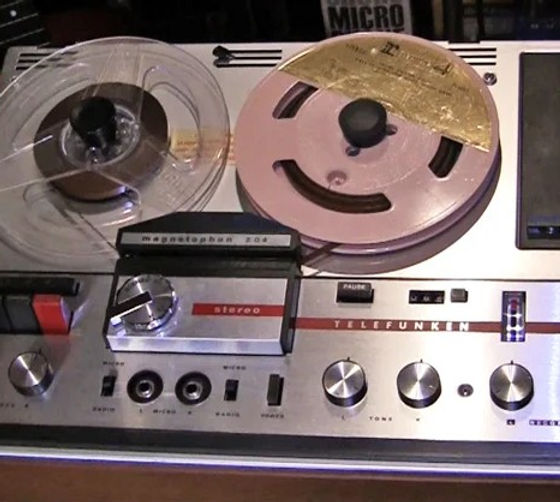

AEG/Telefunken Magnetophon M204

The AEG-Telefunken Magnetophon M204 (also known as Magnetophon 204 or M 204) is a late 1960s consumer stereo reel-to-reel tape recorder, produced approximately 1968–1972 (manufactured in Germany by Telefunken under the AEG-Telefunken brand after the 1967 merger). It was a mid-range model in the Magnetophon line, positioned as an affordable, fully transistorized quarter-track stereo recorder for home hi-fi enthusiasts. The M204 emphasized ease of use, built-in stereo amplification, and respectable sound quality for the era, with a "de Luxe" variant offering minor cosmetic or feature enhancements (e.g., improved meters or controls).

This was a 4-track (quarter-track) stereo machine with mono compatibility, designed for domestic recording (radio, microphone, phono) and playback. It featured a single synchronous motor, two-head configuration, and integrated stereo amplifiers with speakers for standalone operation.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track), 2-channel stereo/mono compatible; records and plays stereo on tracks 1-4 forward and 3-2 reverse (manual tape flip required); mono compatible; basic overdub/sound-on-sound possible.

• Tape Speeds — Two speeds:3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter.

• Frequency Response (approximate, typical tolerances; varies by tape/condition):At 7½ ips: 40 Hz – 16,000–18,000 Hz
  At 3¾ ips: 50 Hz – 12,000–14,000 Hz Good stereo extension for a late 1960s consumer deck at higher speed.


• Wow & Flutter — ≤0.15–0.20% at 7½ ips; ≤0.25–0.30% at 3¾ ips (respectable for single-motor design).

• Signal-to-Noise Ratio — Approximately 48–52 dB at 7½ ips (strong for early transistor stereo).

• Heads — 2 heads: combined record/playback (permalloy) + erase head (no separate playback head for off-tape monitoring).

• Drive System — Single synchronous motor (drives capstan and reels; also functions as mains transformer in some designs); belt/idler drive; mechanical brakes; fast wind/rewind.

• Electronics — Fully transistorized; printed circuit board amplifier.

• Amplification & Speakers — Built-in stereo amplifiers; dual internal loudspeakers (often elliptical); output power modest (~few watts per channel) for monitoring.

• Inputs —Microphone (low-level).
  Radio/line/phono (higher level).
  DIN-style connectors.


• Outputs —Line out (~1 V).
  Headphones possible.
  Internal speakers.
  DIN-style.


• Features —Twin VU meters or level indicators (one per channel).
  Basic transport controls.
  Portable/tabletop design with lid/handle; vertical/horizontal orientation possible.


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V); consumption moderate (~50–80 W).

• Build & Dimensions — Tabletop case (often silver/grey with wood accents); approx. 410 × 300 × 160 mm (16.1 × 11.8 × 6.3 inches); weight ~8–10 kg.

• Manufacturing — Germany (Telefunken/AEG-Telefunken).

Performance & Legacy Context

The Magnetophon M204 was a practical mid-range consumer stereo deck—offering quarter-track stereo, transistor reliability, and built-in stereo amp/speakers for convenience. It delivered decent stereo imaging and clarity at 7½ ips for radio dubbing or home music recording, with acceptable dynamics for its price point. The single-motor and two-head setup limited wow/flutter and monitoring compared to three-head siblings, but it provided good value for entry-to-mid-level hi-fi users.

Common issues today: Belt/idler degradation (goo/melting—kits needed), dried electrolytic capacitors, transistor aging, dirty heads (alignment critical), worn idler tires/clutches, and mechanical wear. Restorations are straightforward—many units revive well for vintage stereo charm. Service manuals available (HiFi Engine, Elektrotanya—German/English versions; schematics and alignment info).

Compared to siblings:

• Magnetophon M203 — Similar era, often mono or lower specs.

• Magnetophon M205/M207 — Close contemporaries with minor refinements (M207 often three-head).

• M204 — Mid-range consumer portable with 2-head, two-speed stereo focus.
