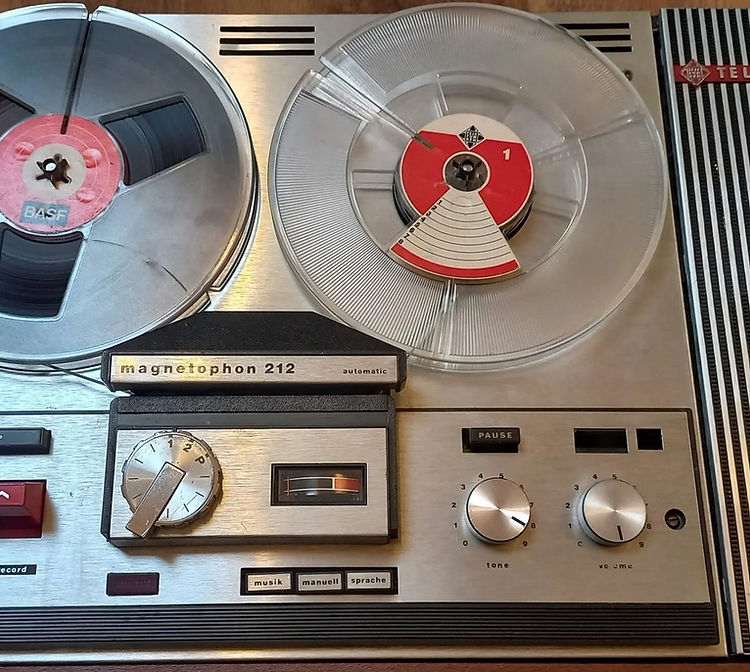

AEG/Telefunken Magnetophon M212

The AEG-Telefunken Magnetophon M212 (also known as Magnetophon 212 or M-212) is a late 1960s to early 1970s consumer reel-to-reel tape recorder, produced approximately 1969–1972 (manufactured in Germany by Telefunken under the AEG-Telefunken brand after the 1967 merger). It was a mid-range model in the Magnetophon line, often labeled as Magnetophon Automatic 212 or similar, positioned as an affordable, fully transistorized quarter-track mono recorder with automatic features for home use. The "automatic" designation refers to simplified operation (e.g., push-button controls, auto-stop at tape end in some configs).

This was a 4-track (quarter-track) mono machine (some sources describe it as vierspur-mono, i.e., quarter-track mono), designed for domestic recording (radio, microphone) and playback. It featured a compact portable design, built-in speaker, and basic automation.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track) mono; records/plays in one direction (tape flip for reverse); mono compatible; basic overdub possible.

• Tape Speeds — Single or dual speeds (primary):3¾ ips (9.5 cm/s) main speed (some variants may include 1⅞ ips).


• Reel Size — Up to 7 inches (18 cm) maximum diameter.

• Frequency Response (approximate):At 9.5 cm/s: 60 Hz – 13,000 Hz (or similar; typical for consumer mono of the era).


• Wow & Flutter — Approximately 0.2–0.3% at 9.5 cm/s (standard for single-motor consumer design).

• Signal-to-Noise Ratio — Around 45–50 dB (typical early transistor performance).

• Heads — 2 heads: combined record/playback + erase (permalloy).

• Drive System — Single motor (synchronous or induction type); belt/idler drive; mechanical brakes; fast wind/rewind.

• Electronics — Fully transistorized (9 transistors reported in some listings); printed circuit board amplifier.

• Amplification & Speakers — Built-in mono amplifier; internal loudspeaker for monitoring/playback.

• Inputs — Microphone; radio/line/phono; DIN-style connectors.

• Outputs — Line out; internal speaker; headphones possible.

• Features —Push-button "automatic" controls.
  Single VU meter or level indicator.
  Portable/tabletop design with lid/handle.


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V; export models include 117 V/60 Hz option); consumption moderate.

• Build & Dimensions — Tabletop case (often grey/silver); approx. ~400 × 300 × 150 mm (estimated); weight ~7–9 kg.

• Manufacturing — Germany (Telefunken/AEG-Telefunken).

Performance & Legacy Context

The Magnetophon M212 was a practical mid-range consumer deck—offering quarter-track mono, transistor reliability, and "automatic" push-button operation for convenience. It delivered decent clarity for radio dubbing or home voice/music recording at 3¾ ips, with acceptable dynamics for the price point. As a mono-focused model, it lacked the stereo imaging of higher siblings like the M207.

Common issues today: Belt/idler degradation (goo/melting—kits needed), dried electrolytic capacitors, transistor aging, dirty heads (alignment critical), worn idler tires/clutches, and mechanical wear. Restorations are straightforward—many units revive well for vintage mono charm. Service manuals available (Radiomuseum, eBay listings for originals; German versions common).

Compared to siblings:

• Magnetophon M203/M205 — Earlier/lower models (similar mono focus, fewer features).

• Magnetophon M207 — Higher-range stereo with 3-head/three-speed.

• M212 — Mid-range mono portable with automatic controls.
