AEG/Telefunken Magnetophon M230

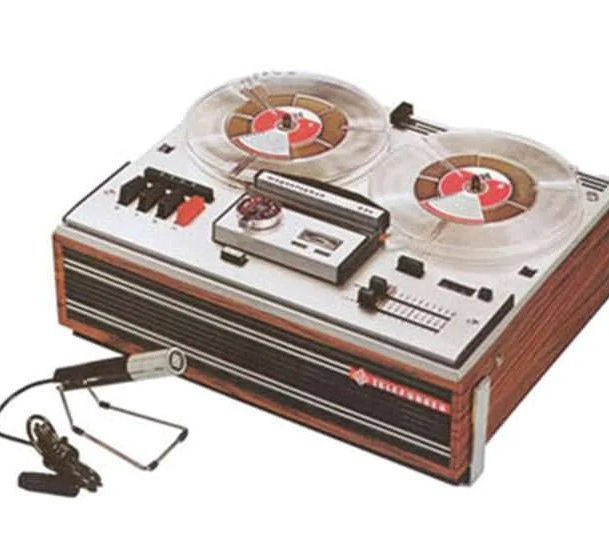

The AEG-Telefunken Magnetophon M230 (also known as Magnetophon 230 or M 230) is a late 1960s to early 1970s consumer stereo reel-to-reel tape recorder, produced approximately 1970–1974 (manufactured in Germany by Telefunken under the AEG-Telefunken brand following the 1967 merger). It was a mid-to-upper mid-range model in the Magnetophon line, positioned above the M207/M212 and aimed at serious home hi-fi enthusiasts seeking improved performance, full stereo capability, and more modern features than earlier Magnetophon models.

The M230 was fully transistorized, featured a three-head configuration for off-tape monitoring, three-motor drive for better stability, and built-in stereo amplification with speakers—making it one of the more capable consumer open-reel decks of its time before the format began declining in the mid-1970s.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track), 2-channel stereo/mono compatible; records and plays stereo on tracks 1-4 forward and 3-2 reverse (manual tape flip required); mono compatible; sound-on-sound/multiplay overdub facilities via separate heads.

• Tape Speeds — Three speeds:1⅞ ips (4.75 cm/s)
  3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter.

• Frequency Response (approximate, typical tolerances; varies by tape/condition):At 7½ ips: 40 Hz – 18,000–20,000 Hz
  At 3¾ ips: 40 Hz – 15,000 Hz
  At 1⅞ ips: 40 Hz – 10,000 Hz Strong hi-fi performance at higher speeds for a consumer deck of the era.


• Wow & Flutter — ≤0.12% at 7½ ips; ≤0.18% at 3¾ ips; ≤0.3% at 1⅞ ips (excellent stability from three-motor design).

• Signal-to-Noise Ratio — >52–55 dB at 7½ ips (very good for transistor era with low-noise tape).

• Heads — 3 heads: separate record, playback, and erase (permalloy; enables real-time off-tape monitoring/A-B comparison).

• Drive System — Three motors (1 × synchronous capstan motor + 2 × reel motors); belt/idler drive to capstan; mechanical brakes; fast wind/rewind; precise tension and braking.

• Electronics — Fully transistorized; printed circuit board amplifier.

• Amplification & Speakers — Built-in stereo amplifiers; dual internal loudspeakers (often elliptical or integrated); output power ~2–5 W per channel (room-filling for monitoring).

• Inputs —Microphone: low-level (~0.2 mV).
  Radio/line/phono: higher level (~100–200 mV).
  DIN-style connectors standard.


• Outputs —Line out: ~1 V / 20–50 kΩ.
  Headphones (monitor).
  External speakers or amp.
  DIN-style.


• Features —Twin illuminated VU meters (needle type; active for record/playback).
  Off-tape monitoring (source/tape switch).
  Pause function.
  Portable/tabletop design with lid/handle; vertical/horizontal orientation possible.


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V); consumption ~60–90 W.

• Build & Dimensions — Tabletop case (often silver/grey with wood accents); approx. 430 × 330 × 180 mm (16.9 × 13 × 7.1 inches); weight ~10–12 kg.

• Manufacturing — Germany (Telefunken/AEG-Telefunken).

Performance & Legacy Context

The Magnetophon M230 was one of AEG-Telefunken's more refined consumer open-reel offerings in the early 1970s—offering three-head monitoring, three-motor stability, three speeds (including usable 7½ ips for music), and integrated stereo amp/speakers for convenience. It delivered clear stereo imaging, good dynamics, and respectable extension at higher speeds when aligned and used with quality tape. The transistorized design provided low noise and better reliability than tube predecessors, making it popular for home recording and hi-fi playback.

Common issues today: Belt/idler degradation (goo/melting—multiple belts need replacement kits), dried electrolytic capacitors, transistor aging, dirty heads (3-head alignment critical), worn idler tires/clutches, and mechanical adjustments. Restorations are common and rewarding—many examples perform well post-service. Service/user manuals available (HiFi Engine, Elektrotanya—includes schematics and alignment; German/English versions).

Compared to siblings:

• Magnetophon M207 — Very similar (often considered close or predecessor; M230 may have minor refinements).

• Magnetophon M203/M205/M212 — Lower-range models (often 2-head or fewer speeds).

• Magnetophon 300 series — Later or parallel models with further improvements.

• M230 — Mid-to-upper mid-range consumer portable with 3-head, three-motor, three-speed stereo focus.
