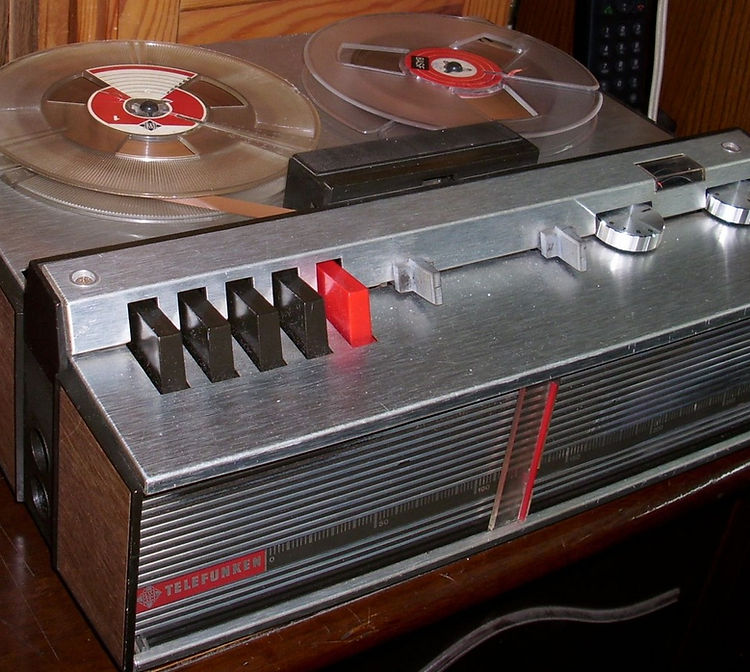

AEG/Telefunken Magnetophon M501

The AEG-Telefunken Magnetophon M501 (also known as Magnetophon 501 or M 501) is a mid-to-late 1970s consumer stereo reel-to-reel tape recorder, produced approximately 1975–1979 (manufactured in Germany by Telefunken under the AEG-Telefunken brand). It was one of the last and most advanced consumer open-reel models in the Magnetophon line before AEG-Telefunken largely discontinued open-reel production in favor of cassette decks. The M501 was positioned as a high-end domestic hi-fi machine with full stereo capability, three-head monitoring, three-motor drive, and integrated stereo amplification—representing the pinnacle of AEG-Telefunken's consumer open-reel efforts in the mid-1970s.

This was a 4-track (quarter-track) stereo recorder with mono compatibility, designed for serious home recording (radio, microphone, phono/line inputs) and high-quality playback, featuring off-tape monitoring, sound-on-sound overdubbing, and built-in speakers for immediate stereo listening.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track), 2-channel stereo/mono compatible; records and plays stereo on tracks 1-4 forward and 3-2 reverse (manual tape flip required); mono compatible; sound-on-sound/multiplay overdub facilities.

• Tape Speeds — Three speeds:1⅞ ips (4.75 cm/s)
  3¾ ips (9.5 cm/s)
  7½ ips (19 cm/s)


• Reel Size — Up to 7 inches (18 cm) maximum diameter.

• Frequency Response (approximate, typical tolerances; varies by tape/condition):At 7½ ips: 30–40 Hz – 18,000–20,000 Hz
  At 3¾ ips: 40 Hz – 15,000 Hz
  At 1⅞ ips: 40 Hz – 10,000 Hz Very good hi-fi extension at higher speeds for a late consumer deck.


• Wow & Flutter — ≤0.08–0.10% at 7½ ips; ≤0.12–0.15% at 3¾ ips; ≤0.25% at 1⅞ ips (excellent stability from three-motor design).

• Signal-to-Noise Ratio — >55–58 dB at 7½ ips (strong for transistor era with low-noise tape).

• Heads — 3 heads: separate record, playback, and erase (permalloy; enables real-time off-tape monitoring/A-B comparison).

• Drive System — Three motors (1 × synchronous capstan motor + 2 × reel motors); belt/idler drive to capstan; mechanical or electronic tension control; fast wind/rewind; precise braking.

• Electronics — Fully transistorized; printed circuit board amplifier.

• Amplification & Speakers — Built-in stereo amplifiers; dual internal loudspeakers; output power sufficient for monitoring/room filling (typically 4–8 W per channel).

• Inputs —Microphone: low-level (~0.2 mV).
  Radio/line/phono: higher level (~100–200 mV).
  DIN-style connectors standard.


• Outputs —Line out: ~1 V / 20–50 kΩ.
  Headphones (monitor).
  External speakers or amp.
  DIN-style.


• Features —Twin illuminated VU meters (needle type; active for record/playback).
  Off-tape monitoring (source/tape switch).
  Pause function.
  Portable/tabletop design with lid/handle; vertical/horizontal orientation possible.


• Power — AC mains (multi-voltage switchable, e.g., 110–240 V); consumption ~80–110 W.

• Build & Dimensions — Tabletop case (often silver/grey with wood accents); approx. 470 × 370 × 210 mm (18.5 × 14.6 × 8.3 inches); weight ~13–15 kg.

• Manufacturing — Germany (Telefunken/AEG-Telefunken).

Performance & Legacy Context

The Magnetophon M501 was among AEG-Telefunken's most refined consumer open-reel decks in the mid-1970s—offering three-head monitoring, three-motor stability, three speeds (including usable 7½ ips for music), and integrated stereo amp/speakers for convenience. It delivered clear stereo imaging, excellent dynamics, low noise, and strong extension at higher speeds when aligned and used with quality tape. The transistorized design provided outstanding reliability and low background noise, making it a favorite among late-era open-reel enthusiasts.

Common issues today: Belt/idler degradation (goo/melting—multiple belts need replacement kits), dried electrolytic capacitors, transistor aging, dirty heads (3-head alignment critical), worn idler tires/clutches, and mechanical adjustments. Restorations are common and highly effective—many examples perform exceptionally well post-service. Service/user manuals available (HiFi Engine, Elektrotanya—includes schematics and alignment; German/English versions).

Compared to siblings:

• Magnetophon M207/M230/M250 — Earlier or very similar models (often considered close predecessors; M291/M501 represent the final refinements).

• Magnetophon 300 series — Parallel or slightly earlier models with comparable specs.

• M501 — Late high-end consumer portable with 3-head, three-motor, three-speed stereo focus.
