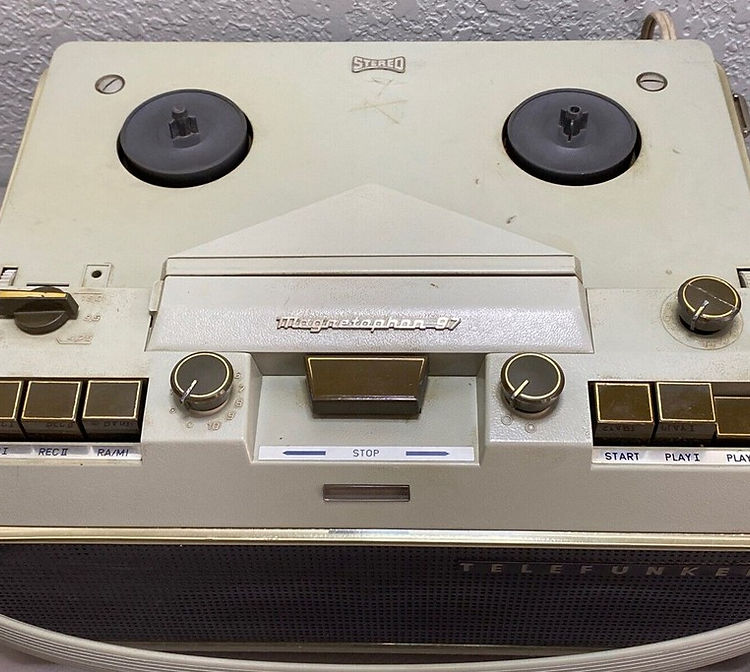

AEG/Telefunken Magnetophon M97
AEG/Telefunken
Germany
Tape Deck Details
Number of Motors
1
Number of Heads
1
Head Configuration
Wow & Flutter
0.5%
Signal-to-Noise [dB]
45
Dimensions [mm]
410 x 200 x 292
Weight [kg]
14
Year built
1961–1966
Head Composition
Permalloy
Equalization
IEC
Frequency Response
40–16 kHz
Speed
1⅞, 3¾, 7½
Max Reel [inch]
7
Tracks
1/4 Rec/PB
Price
User
Consumer
Additional Information
The AEG Telefunken Magnetophon M97 is a consumer-grade 4-track stereo open-reel tape recorder from 1961–1966, produced by Telefunken under AEG's Magnetophon division in Germany. It marked an early transition to full stereo recording/playback in the tabletop format, offering three speeds and respectable tube amplification for home audiophiles seeking vinyl-quality analog capture.
Key Technical Specifications
Track System: 4-track stereo (vierspur-stereo) with mono recording capability and stereo playback
Tape Speeds: 1⅞ ips (4.75 cm/s), 3¾ ips (9.5 cm/s), 7½ ips (19 cm/s)
Maximum Reel Size: 7 inches (18 cm)
Heads: Standard 4-track erase/record/playback configuration (permalloy composition)
Motors: Single motor drive with idler-wheel and belt transport
Frequency Response: 40–16 kHz at 7½ ips (typical for era)
Wow and Flutter: <0.5% at highest speed
Signal-to-Noise Ratio: >45 dB
Total Harmonic Distortion: <5%
Electronics: Tube amplification (7 valves); dual power amps at 2.5W per channel
Inputs: Microphone (high impedance), radio/line/aux
Outputs: Dual elliptical permanent-magnet dynamic loudspeakers; line/headphone jacks
Equalization: IEC standard
Features: Needle VU meters, mechanical tape counter, multi-voltage power supply
Power Requirements: 110/127/220/240 V AC
Dimensions: 410 x 200 x 292 mm (16.1" x 7.9" x 11.5")
Weight: 12.4–14 kg (27–31 lbs)
Build: Low-profile tabletop plastic chassis; new price 825 DM (~$200 USD equivalent)
Variants and Context
M97 Standard: Base stereo model
Parallel to AEG Magnetophon 97: Identical construction across branding
Successor to M96 mono, predecessor to later consumer stereo like M300 series
The M97 delivered warm tube sonics suitable for radio dubbing and home music recording, with speed flexibility extending playtime (up to 8 hours per side at slowest speed). Its 4-track design optimized tape usage while supporting stereo playback of compatible prerecorded reels. Modern examples require routine tube/recap service and head cleaning but remain reliable for vintage playback.
Collectible today as one of AEG/Telefunken's first consumer stereo decks, bridging their pro M-series heritage with accessible hi-fi—ideal for enthusiasts exploring early solid-state-adjacent tube analog before the cassette revolution.
