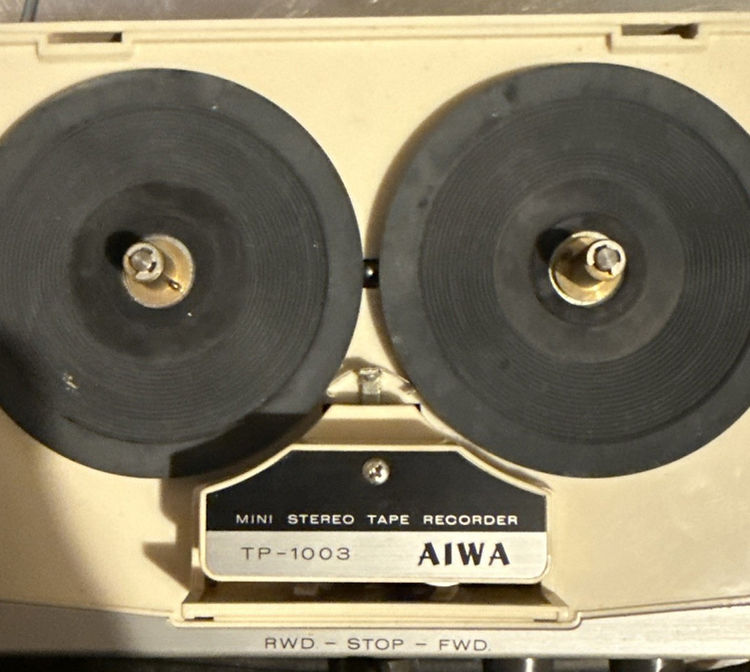

Aiwa TP-1003

The AIWA TP-1003 is a late 1960s portable stereo open-reel tape recorder, produced in Japan approximately 1968–1971. It was one of AIWA's few consumer stereo reel-to-reel models, designed as a compact, battery/AC-powered portable for home, travel, or semi-professional use. The TP-1003 stood out in AIWA's lineup (mostly mono rim-drive portables like TP-30R/TP-60/TP-703) by offering true stereo recording and playback on ¼-inch tape, with a rim-drive mechanism and built-in stereo speakers.

This was a 4-track (quarter-track) stereo recorder (vierspur-stereo), allowing two stereo sides per reel (manual tape flip required), with mono compatibility and basic sound-on-sound overdub capability.

Key Technical Specifications

• Recording/Playback System — 4-track (quarter-track), 2-channel stereo/mono compatible; records/plays stereo on tracks 1-4 forward and 3-2 reverse (manual tape flip); mono compatible; sound-on-sound/multiplay overdub possible.

• Tape Speeds — Single fixed speed:3¾ ips (9.5 cm/s) nominal (rim-drive; actual speed may vary slightly due to no capstan control).


• Reel Size — Maximum 5 inches (127 mm) reels (compact for portability; typical tape length ~300–600 feet).

• Recording Time — Approximately 30–45 minutes per side (both stereo tracks) with 600-foot tape; ~1–1.5 hours total per reel.

• Frequency Response (approximate):At 9.5 cm/s: ~60 Hz – 10,000–12,000 Hz (±3–6 dB) Respectable stereo performance for a late-1960s portable rim-drive recorder.


• Wow & Flutter — Approximately 0.5–1.0% (high by modern standards; rim-drive prone to speed variations from battery voltage, reel size, and mechanical wear).

• Signal-to-Noise Ratio — ~40–45 dB (typical for transistor stereo portable of the era; noticeable hiss).

• Heads — 2 heads: combined record/playback (stereo pair) + erase head (no separate playback head for off-tape monitoring).

• Drive System — Rim-drive (no capstan; tape driven by rubber rim on reel hub); two small motors (one for record/playback, one for rewind/fast forward); no pinch roller or flywheel; mechanical brakes; push-button controls.

• Electronics — Fully transistorized (likely 8–12 transistors); printed circuit board amplifier.

• Amplification & Speakers — Built-in stereo amplifiers (~200–500 mW per channel); two small dynamic speakers (internal, often 2–3 inches); headphone jack for private monitoring.

• Inputs —Stereo microphone (low-level).
  Stereo line/phono (higher level).
  DIN-style or mini-jack connectors.


• Outputs —Stereo line out.
  Stereo headphone jack.
  Internal speakers.


• Power — Batteries: 6 × 1.5 V "C" cells (9 V total) or 1 × 9 V for amplifier + separate battery pack for motors; optional AC adapter.

• Build & Dimensions — Compact plastic/metal case with carrying handle; approx. 300 × 100 × 220 mm (11.8 × 3.9 × 8.7 inches); weight ~3–4 kg (with batteries).

• Manufacturing — Japan (AIWA Co. Ltd.); original price ~$100–150 (late 1960s budget stereo portable).

Performance & Legacy Context

The AIWA TP-1003 was a rare early stereo portable reel-to-reel recorder—offering true stereo recording/playback in a compact, battery-powered package at a time when most portables were mono rim-drive units. It delivered acceptable stereo imaging and clarity for voice, radio dubbing, or casual music at 3¾ ips, with built-in speakers for immediate playback. Rim-drive simplicity kept it small and cheap, but speed stability was poor (high wow/flutter), and frequency response/noise were limited compared to capstan-driven decks.

Surviving examples are collectible curiosities (often missing batteries, belts, or rims). They are valued for 1960s Japanese miniaturization and early stereo portability but rarely used today due to rim-drive limitations, fragile mechanics, and small reel capacity.

Common issues today: Rubber rim wear (speed instability), motor failure (old batteries corrode), transistor aging, dirty heads, mechanical binding, case cracking, and speaker cone degradation. Restorations are simple but parts (rims, motors, small reels) are rare.

Compared to siblings:

• AIWA TP-30R/TP-60/TP-703 — Earlier mono rim-drive portables.

• TP-1003 — Late 1960s rim-drive stereo portable (3¾ ips, 5" reels, built-in stereo speakers).

• Later models — Shift to cassette decks (TP-1009 etc.).
