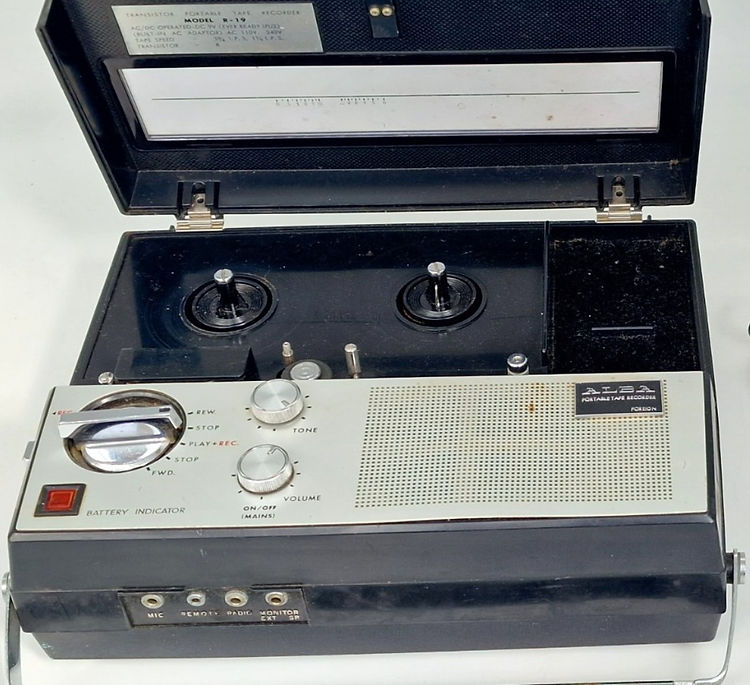

Alba R19

The Alba R19 is a mid-1960s British domestic reel-to-reel tape recorder manufactured by Alba (Balcombe Ltd.). Positioned as a compact yet capable home recorder, the R19 represents the transitional phase in consumer tape technology when British manufacturers were moving from early single-speed, two-track machines toward more versatile four-track recorders with improved audio performance.

While never intended to compete with professional machines such as those produced by Revox or Studer, the Alba R19 provided domestic users with a reliable and accessible entry into magnetic tape recording during the peak years of the format.

Historical Context

During the early and mid-1960s, reel-to-reel recorders became common household appliances across the United Kingdom. Manufacturers such as Fidelity Radio, Elizabethan Electronics, and Alba competed vigorously in the consumer market.

The R19 was introduced when the industry was evolving toward:

• larger reel capacities

• multiple tape speeds

• improved recording formats

• more compact portable designs

Machines like the R19 were marketed as complete home recording systems, capable of capturing radio broadcasts, music, and voice recordings without requiring separate hi-fi components.

Mechanical Design

Tape Transport

The Alba R19 typically uses a single-motor tape transport mechanism, widely employed in domestic machines of the period.

Key design characteristics include:

• capstan and pinch-roller tape drive

• idler-wheel transmission from the main motor

• mechanical push-button controls for transport functions

• manual tape threading

Many Alba recorders of this era incorporated transport assemblies manufactured by BSR (Birmingham Sound Reproducers), a major supplier of mechanisms to British audio manufacturers.

Reel Capacity

Maximum reel size:

• 7 inches (≈17.8 cm)

The ability to accommodate 7-inch reels allowed the R19 to provide significantly longer recording times compared with earlier models limited to smaller reels.

Tape Speeds

The Alba R19 generally offers two recording speeds:

• 1⅞ ips (4.75 cm/s)

• 3¾ ips (9.5 cm/s)

These speeds gave users the option of prioritizing recording duration or improved audio fidelity.

Track Format

The recorder uses the four-track mono format on ¼-inch (6.35 mm) magnetic tape.

Four-track recording allows:

• two stereo programs per tape (when used with stereo equipment)

• double the recording time compared with two-track systems

• compatibility with commercially prerecorded tapes

This format became the dominant consumer standard throughout the 1960s.

Head System

The R19 employs a two-head configuration:

1. Combined record/playback head

2. Erase head

This layout was typical for domestic machines and provided reliable operation while keeping manufacturing costs reasonable.

The head assembly is mounted with adjustable azimuth alignment to ensure proper tape-to-head contact and accurate high-frequency reproduction.

Electronics Architecture

Valve-Based Amplifier

Like many British recorders of the early 1960s, the Alba R19 uses vacuum tube (valve) electronics rather than transistors.

Typical circuit stages include:

• microphone preamplifier

• record amplifier

• playback equalization amplifier

• bias oscillator

• power output stage for the loudspeaker

The use of valves results in a characteristic warm tonal quality that many vintage audio enthusiasts appreciate today.

Recording Level Indicator

A magic-eye level indicator is fitted to the front panel.

This vacuum-tube display allows the user to monitor recording levels visually, ensuring that signals remain within an optimal range for magnetic tape.

Proper level adjustment was essential to prevent distortion or excessive tape noise.

Integrated Amplifier and Speaker

The Alba R19 is designed as a self-contained tape recording system.

Typical audio facilities include:

• built-in mono amplifier

• internal loudspeaker

• microphone input

• radio/line input

• external speaker output

These features allowed the machine to function independently without the need for external hi-fi equipment.

Audio Performance

Performance specifications for machines in this class were typical of mid-1960s consumer recorders.

Approximate values include:

Frequency response

• approximately 100 Hz – 10 kHz at 3¾ ips

Signal-to-noise ratio

• approximately 40–45 dB

Wow and flutter

• roughly 0.3–0.4 %

While modest by modern standards, these specifications were sufficient for domestic music recording and speech applications.

Cabinet and Physical Construction

The recorder is housed in a portable suitcase-style cabinet.

Design features include:

• hinged lid with tape storage space

• integrated carrying handle

• front-mounted loudspeaker grille

• compact control panel layout

This portable design made the machine practical for casual home use and easy storage.

Power Supply

The R19 operates from AC mains power (220–240 V).

The internal power supply typically includes:

• mains transformer

• rectifier valve

• smoothing capacitors

These components provide the high-voltage supply required by the valve circuitry.

Typical Applications

Users commonly employed the Alba R19 for:

• recording radio programs

• capturing family events or spoken messages

• amateur music recording

• playing commercially recorded tapes

• educational or hobbyist audio projects

Recorders of this type were often sold with a microphone and a starter reel of tape to encourage immediate use.

Restoration Considerations

Most surviving examples require restoration due to age.

Common service tasks include:

Electronic refurbishment

• replacing aging paper capacitors

• replacing electrolytic capacitors

• testing and replacing worn valves

Mechanical servicing

• cleaning and lubricating the tape transport

• replacing hardened idler wheels

• restoring the pinch roller

• adjusting braking and tension systems

Head maintenance

• cleaning oxide deposits

• verifying azimuth alignment

• inspecting head wear

Because of its relatively simple circuitry, the Alba R19 is generally considered a reasonable restoration

project for vintage audio enthusiasts.

Collector Perspective

Today the Alba R19 is appreciated primarily as a representative example of British consumer tape recorders from the 1960s.

Collectors value it for:

• its classic valve electronics

• straightforward mechanical design

• historical significance in the development of home audio recording

Although its performance cannot match professional tape recorders, the R19 offers a nostalgic glimpse into the era when magnetic tape first became part of everyday domestic life.

Summary

The Alba R19 stands as a solid example of the mid-1960s British home tape recorder. With four-track recording, multiple speeds, and a portable integrated design, it offered everyday users an accessible way to explore tape recording during the golden age of analog audio.
