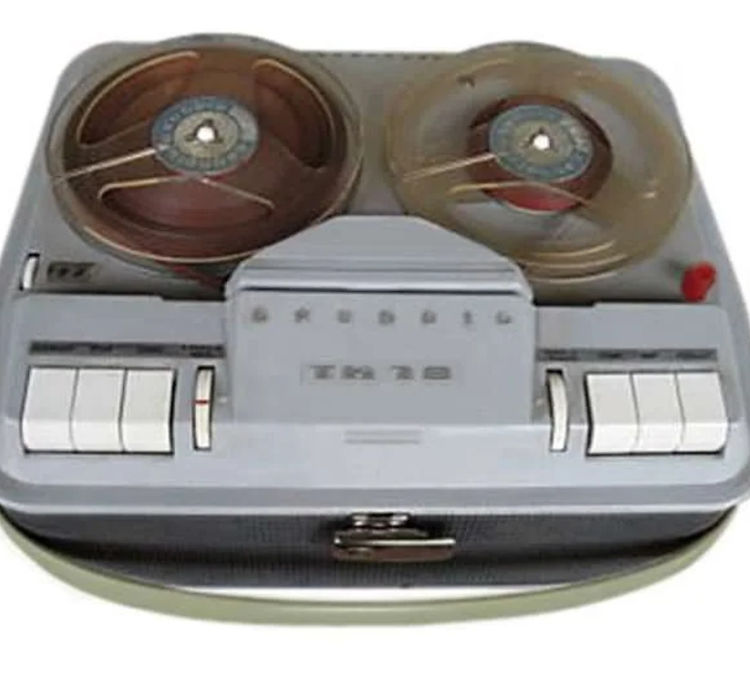

Grundig TK 18

The Grundig TK 18 (also known as TK18 or TK 18 in various markets, sometimes with "De Luxe" or export variants) is a mid-1960s open-reel (reel-to-reel) tape recorder produced by Grundig Radio-Vertrieb in Fürth, Germany. Manufactured primarily from 1963 to 1966, it was a compact, single-speed mono domestic machine aimed at entry-level home users, radio enthusiasts, and hobbyists seeking an affordable, reliable recorder with automatic recording level control (AVC/"Magic Ear").

The TK 18 was priced originally around £40 19s in the UK export market (equivalent to roughly 400 DM in Germany), positioning it as a budget-friendly step up from earlier models like the TK 14 while remaining accessible. It was valued for its push-button operation, automatic level control, and decent sound for speech or light music dubbing, though it lacked multi-speed versatility or stereo capability.

Key Technical Specifications

Track System: 2-track (half-track), single-channel monaural (monaural record/playback; records on upper half of tape in one direction, lower half in reverse)

• Tape Speeds: Single speed — 9.5 cm/s (3¾ ips / 3.75 inches per second; no multi-speed capability, optimized for domestic runtime and basic fidelity)

• Reel Size: Maximum 5¾ inches / 14.6 cm (often listed as 5¾" or up to 6 inches; commonly used with 5–5¾ inch reels; supports standard NAB/international hubs)

• Heads: 2 heads — combined record/playback head + erase head (permalloy construction; no separate playback head or off-tape monitoring)

• Motors: 1 motor (capstan drive; single-motor design with mechanical reel assistance; reliable induction-type motor typical of mid-1960s consumer machines)

• Drive System: Mechanical transport with fully push-button operation (two banks of three piano-style keys + rim control knobs); constant tape speed; foil-sensing automatic stop at tape end; basic tension regulation suitable for standard and thinner tapes

• Frequency Response: Approximately 40 Hz – 12,000–13,000 Hz (±3 to –5 dB at 3¾ ips; some sources note 40–13 kHz; respectable for a single-speed entry-level mono recorder of the era, with improved clarity over earlier models like the TK 14)

• Signal-to-Noise Ratio: ≈45–55 dB (typical; good for the era, aided by automatic level control and quality circuitry)

• Wow & Flutter: ≈0.2–0.4% (acceptable for domestic use; single-motor designs had tolerable variations)

• Equalization: CCIR/European standard for the period (some export versions note NARTB compatibility)

• Inputs:Microphone: Low-level (dynamic mic via DIN or proprietary socket; often supplied external mic)
  Line/Radio: High-level input via DIN connector (Grundig 5-pin standard)
  Phono/Grammophon: Additional high-level input for record players


• Outputs: Built-in loudspeaker (elliptical permanent-magnet dynamic type, typically 5½ × 4½ inches / 144 × 96 mm); line out via DIN socket; output power ≈2.5 watts

• Power Supply: Alternating Current (AC) mains — 110–240 V (multi-voltage taps for export); power consumption around 55–80 W; no battery option (mains-only domestic/portable hybrid)

• Dimensions: Approximately 380–420 × 200 × 340–380 mm / 15–16.5 × 7.9 × 13.4–15 inches (W × H × D) — compact suitcase/portable form factor with handle

• Weight: Around 10–12 kg (22–26 lbs) — portable yet substantial due to metal chassis, transformers, and tubes

• Electronics: Valve/tube-based (typically 5 tubes; common complement includes EF86 preamp, ECC81 phase splitter/driver, EL84 output (push-pull), EM84 magic eye level indicator; metal rectifier for power supply; some variants note automatic level control circuitry replacing manual adjustment)

• Other Features: Magic eye (EM84) recording level indicator (glow for level monitoring; some units with automatic gain control/"Magic Ear" instead of manual); mechanical tape counter; automatic tape-end stop; pause function; recording time ≈60–90 minutes total (30–45 minutes per direction) on 5¾-inch reels with standard tape

Design and Performance Notes

The TK 18 was a practical, entry-level domestic recorder with a focus on ease of use: fully push-button operation (piano-style keys for play, record, stop, fast forward/rewind, etc.) and automatic recording level control (AVC/"Magic Ear") made it forgiving for beginners, eliminating the need for manual gain adjustment. The tube circuitry delivered a warm, musical tone suitable for radio dubbing or home entertainment, with improved frequency response over predecessors like the TK 14—modern vintage ratings place it around 6–7/10 for sound (solid mono performer) and 7–8/10 for build reliability/durability.

The drive mechanism was durable and straightforward, with minimal electronics complexity. Common long-term service needs include:

• Tube replacement/check (EF86 microphonics; EL84 output wear)

• Cleaning heads, capstan, pinch roller, and tape path

• Replacing electrolytic capacitors (leakage common after 60+ years)

• Lubricating mechanisms and checking drive belts/pulleys

• Magic eye alignment and rectifier checks

Historical Context

The TK 18 was part of Grundig's foundational 1950s–1960s TK series that popularized open-reel recording in Europe and export markets. It followed models like the TK 14/TK 15 and preceded later multi-speed/stereo machines (TK 14x, TK 24x, etc.). Surviving examples are collectible today, often in good cosmetic condition due to robust construction, but most require tube and capacitor restoration for reliable operation. They represent an accessible entry into vintage tube-era open-reel collecting, especially for those interested in late-1950s/early-1960s German audio engineering and automatic level control designs.
