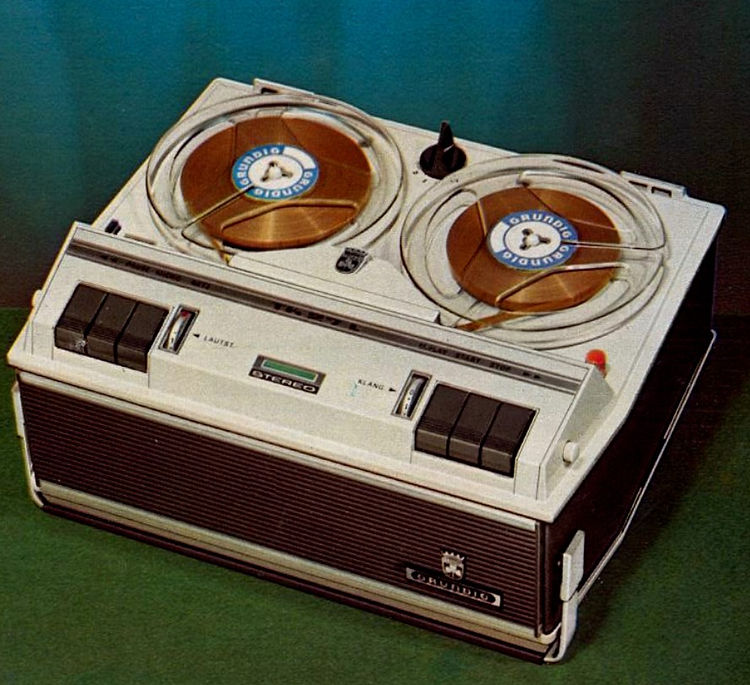

Grundig TK 27

The Grundig TK 27 (also known as TK27, TK 27 Stereo, or TK 27 de Luxe / TK 27 L in variants) is a mid-1960s open-reel (reel-to-reel) tape recorder produced by Grundig Radio-Vertrieb in Fürth, Germany. Manufactured primarily from 1962 to around 1966–1967 (with the TK 27 L or de Luxe versions appearing circa 1965–1966 as upgraded editions), it was a compact, quarter-track stereo-capable mono/stereo domestic machine aimed at mid-range home users, radio enthusiasts, and hobbyists. It marked a transition in Grundig's TK series toward more advanced features like quarter-track stereo recording, improved electronics, and a refined "Luxus" aesthetic.

The TK 27 was priced originally around 600–800 DM (or equivalent in export markets), positioning it as a premium mid-tier model in the TK lineup. It was valued for its stereo capability (via external amplifiers), automatic features in some variants, and solid German engineering, making it suitable for home music recording, radio dubbing, or stereo playback setups.

Key Technical Specifications

Track System: 4-track (quarter-track), 2-channel stereo / monaural (stereo record/playback via external amp; monaural operation also supported; records on one quarter-track per pass, allowing four tracks total on standard tape by flipping reels twice)

• Tape Speeds: Single speed — 9.5 cm/s (3¾ ips / 3.75 inches per second; no multi-speed capability, optimized for domestic runtime and fidelity balance)

• Reel Size: Maximum 15 cm / 6 inches (up to 6 inch reels; commonly used with 13–15 cm reels; supports standard NAB/international hubs)

• Heads: 2 heads — combined record/playback head + erase head (permalloy construction; no separate playback head or off-tape monitoring; quarter-track stereo design requires careful alignment for track compatibility)

• Motors: 1 motor (capstan drive; single-motor design with mechanical reel assistance; reliable induction-type motor typical of mid-1960s consumer machines)

• Drive System: Mechanical transport with push-button or lever controls; constant tape speed; foil-sensing automatic stop at tape end; basic tension regulation suitable for standard and thinner tapes

• Frequency Response: Approximately 40 Hz – 12,000 Hz (±3 to –5 dB at 3¾ ips; respectable for a single-speed quarter-track stereo recorder of the era, with good clarity and extension for voice and light music)

• Signal-to-Noise Ratio: ≈45–55 dB (typical; good for mid-1960s consumer stereo/mono, aided by quarter-track design and quality circuitry)

• Wow & Flutter: ≈0.2–0.3% (at 3¾ ips; low and acceptable for domestic use; single-motor designs had tolerable variations)

• Equalization: CCIR/European standard for the period (some export versions note NARTB compatibility)

• Inputs:Microphone: Low-level (dynamic mic via DIN or proprietary socket; often supplied external mic)
  Line/Radio: High-level input via DIN connector (Grundig 5-pin standard)
  Phono/Grammophon: Additional high-level input for record players


• Outputs: Built-in loudspeaker (elliptical permanent-magnet dynamic type; TK 27 L variants often with enhanced dispersion); line out via DIN socket (stereo preamp output for external amplifiers); output power ≈2–4 watts (internal amp)

• Power Supply: Alternating Current (AC) mains — 110/130/220/240 V (multi-voltage taps for export); power consumption around 55–80 W; no battery option (mains-only domestic/portable hybrid)

• Dimensions: Approximately 340 × 175 × 270 mm / 13.4 × 6.9 × 10.6 inches (W × H × D) — compact suitcase/portable form factor with handle

• Weight: Around 9–11 kg (20–24 lbs) — portable yet substantial due to metal chassis, transformers, and tubes

• Electronics: Valve/tube-based (typically 6 tubes): 2× EF86 preamp (one per channel), 2× ECC81 phase splitter/driver, EM84 magic eye level indicator, EL95 output (push-pull stereo capable); diodes (M3) for rectification

• Other Features: Magic eye (EM84) recording level indicator (glow for level monitoring); mechanical tape counter; automatic tape-end stop; pause function; recording time ≈2–4 hours total (depending on tape thickness and track usage) on 6-inch reels with long-play tape

Design and Performance Notes

The TK 27 was a refined mid-range domestic recorder with a focus on stereo capability and extended playtime: quarter-track stereo allowed two stereo tracks (or four mono tracks by flipping), doubling capacity compared to half-track designs. Push-button controls and the tube circuitry delivered a warm, musical tone suitable for radio dubbing or home stereo setups, with improved frequency response over earlier models—modern vintage ratings place it around 6–8/10 for sound (solid mono/stereo performer) and 7–8/10 for build reliability/durability.

The drive mechanism was durable and straightforward, with minimal electronics complexity. The TK 27 L or de Luxe variants often included cosmetic upgrades (better cabinet finish) or minor electronic refinements. Common long-term service needs include:

• Tube replacement/check (EF86 microphonics; EL95 output wear)

• Cleaning heads, capstan, pinch roller, and tape path

• Replacing electrolytic capacitors (leakage common after 60+ years)

• Lubricating mechanisms and checking drive belts/pulleys

• Magic eye alignment and rectifier checks

Historical Context

The TK 27 was part of Grundig's foundational 1950s–1960s TK series that popularized open-reel recording in Europe and export markets. It followed models like the TK 19/TK 22–TK 25 and preceded later multi-speed/stereo machines (TK 14x, TK 24x, etc.). Surviving examples are collectible today, often in good cosmetic condition due to robust construction, but most require tube and capacitor restoration for reliable operation. They represent an accessible entry into vintage tube-era open-reel collecting, especially for those interested in mid-1960s German audio engineering and early quarter-track stereo designs.
