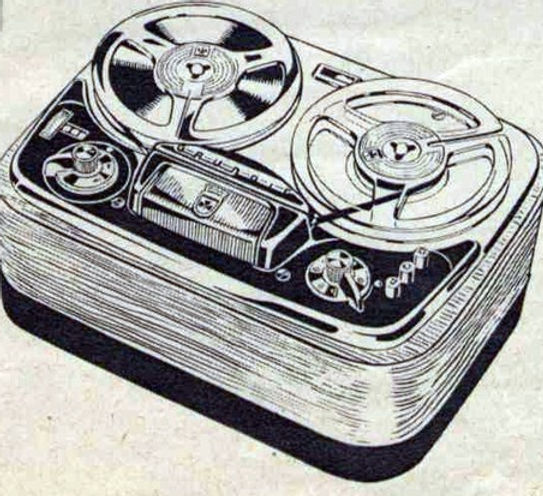

Grundig TM 20

The Grundig TM 20 (also known as TM20 or TM 20 in various markets, sometimes referred to as a "deck-only" or chassis version of the TK 20 family) is a mid-1950s open-reel (reel-to-reel) tape recorder produced by Grundig Radio-Vertrieb in Fürth, Germany. Manufactured primarily from 1958 to around 1960, it was a budget-oriented mono domestic machine aimed at entry-level home users and hobbyists. It was essentially a stripped-down or "tape machine" (TM = Tonbandmaschine) variant of the full TK 20 series, often sold without the complete suitcase cabinet, full amplifier, or larger speaker, focusing on core recording/playback functionality at a lower price point.

The TM 20 was priced originally around 500 DM (lower than the TK 20 at ~658 DM), making it an accessible entry into tape recording. It was valued for its simplicity, reliable tube sound, and basic performance for radio dubbing, dictation, family events, or light music, though limited by single speed and basic heads.

Key Technical Specifications

Track System: 2-track (half-track), single-channel monaural (monaural record/playback; records on upper half of tape in one direction, lower half in reverse)

• Tape Speeds: Single speed — 9.5 cm/s (3¾ ips / 3.75 inches per second; no multi-speed capability, optimized for domestic runtime and basic fidelity)

• Reel Size: Maximum 5¾ inches / 146 mm (commonly used with 5-inch reels for compactness; supports standard NAB/international hubs)

• Heads: 2 heads — combined record/playback head + erase head (permalloy construction; no separate playback head or off-tape monitoring)

• Motors: 1 motor (capstan drive; single-motor design with mechanical reel assistance; reliable induction-type motor typical of late-1950s budget consumer machines)

• Drive System: Mechanical transport with push-button or lever controls; constant tape speed; foil-sensing automatic stop at tape end; basic tension regulation suitable for standard tape

• Frequency Response: Approximately 60 Hz – 12,000 Hz (±3 to –5 dB at 3¾ ips; respectable for a single-speed entry-level mono recorder of the era, focused on clear voice and light music)

• Signal-to-Noise Ratio: ≈45 dB (typical; modest but adequate for non-professional use)

• Wow & Flutter: ≈0.2% (at 3¾ ips; acceptable for domestic use; single-motor designs had tolerable variations)

• Equalization: CCIR/European standard for the period (some export versions note NARTB compatibility)

• Inputs:Microphone: Low-level (dynamic mic via DIN or proprietary socket; often supplied external mic)
  Line/Radio: High-level input via DIN connector (Grundig 5-pin standard)
  Phono/Grammophon: Additional high-level input for record players


• Outputs: Built-in loudspeaker (single permanent-magnet dynamic type); line out via DIN socket; output power ≈2.5 watts

• Power Supply: Alternating Current (AC) mains — 110–240 V (multi-voltage taps for export); power consumption around 55–80 W; no battery option (mains-only domestic/portable hybrid)

• Dimensions: Approximately 350 × 180 × 280 mm / 13.8 × 7.1 × 11 inches (W × H × D) — compact chassis/portable form factor (often sold without full suitcase enclosure)

• Weight: Around 8–10 kg (17.6–22 lbs) — portable yet substantial due to metal chassis, transformers, and tubes

• Electronics: Valve/tube-based (typically 4 tubes): EF86 preamp, ECC81 phase splitter/driver, EL95 output (push-pull), EM84 magic eye level indicator; metal rectifier for power supply

• Other Features: Magic eye (EM84) recording level indicator (glow for level monitoring); mechanical tape counter; automatic tape-end stop; pause function; recording time ≈2 hours total (1 hour per direction) on 5.75-inch reels with standard tape

Design and Performance Notes

The TM 20 was a cost-reduced "deck" variant of the TK 20 series, often sold as a chassis or basic unit without the full TK-20 suitcase, larger speaker, or certain controls. It prioritized affordability and basic usability: single speed and tube circuitry delivered a warm, intelligible tone suitable for voice or light music, with good clarity for its era—modern vintage ratings place it around 5–6/10 for sound (functional mono performer) and 6–7/10 for build reliability/durability.

The drive mechanism was simple and durable (belt-driven capstan from motor pulley), with minimal electronics complexity. Common long-term service needs include:

• Tube replacement/check (EF86 microphonics; EL95 output wear)

• Cleaning heads, capstan, pinch roller, and tape path

• Replacing electrolytic capacitors (leakage common after 60+ years)

• Replacing rubber drive belts/idlers (common failure point in 1950s models)

• Lubricating mechanisms

• Magic eye alignment and rectifier checks

Historical Context

The TM 20 was part of Grundig's foundational 1950s TK/TM series that popularized open-reel recording in Europe. It was a budget sibling to the TK 20 (with similar internals but often stripped-down features), often exported or sold as a "tape machine" without full amplifier extras. Surviving examples are collectible today as entry-level vintage pieces, often in good cosmetic condition due to sturdy construction, but most require tube and capacitor restoration for reliable operation. They represent an accessible entry into vintage tube-era open-reel collecting, especially for those interested in late-1950s German audio engineering and budget mono designs.
