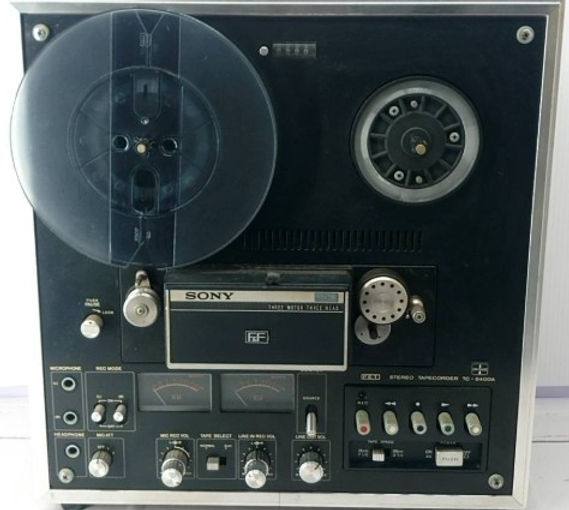

Sony TC-9400A

The Sony TC‑9400A is a mid‑high‑fidelity, solid‑state stereo tape deck from around 1972, essentially the Japanese domestic version of the TC‑9400, designed as a 3‑motor, 3‑head ¼‑track stereo machine for 7‑inch reels at 9.5 and 19 cm/s (3¾ and 7½ ips).

Key Technical Features

• Track System: 4-track (Quarter-Track), 2-channel Stereo recording and playback. This is the common stereo format used by consumers, allowing two stereo programs (four total tracks) on a $1/4$ inch tape.

• Head Configuration: 3 Heads (Stereo):2
  1 x Ferrite Erase Head3
  1 x Ferrite Record Head
  1 x Ferrite Playback Head

• Tape Speeds: Two selectable speeds:
  7 1/2 ips - Standard high-fidelity speed.
  3 3/4 ips - Extended recording time.

• Motor System: 3-Motor Transport (a hallmark of quality):
  1 x Capstan Motor (responsible for tape speed).
  2 x Reel Motors (Supply and Take-up) for smooth tape handling and fast winding.

• Transport Features:
  Accommodates up to 7-inch reels.7
  Fast-forward/Rewind Time: Approximately 1 minute 30 seconds for a standard 370 m (1200 ft) tape.
  Separate controls for Recording Gain, Equalization, and Bias for optimal performance with different tape types.

• Tape Compatibility: Includes selectors for different tape formulations, notably optimized for Sony's SLH (Super Low-noise High-output) tape, as well as general tapes.

• Wow and flutter: 0.07% WRMS at 19 cm/s, 0.11% WRMS at 9.5 cm/s.​

• Total S/N: 53 dB with standard tape, 56 dB with SLH tape; THD about 1.2%.​

Electronics, I/O, and facilities

• Electronics: solid‑state, using about 27 transistors, 2 FETs, and 12 diodes, with a constant‑voltage supply, ~160 kHz bias oscillator, and an FET first stage in the playback amp to reduce high‑frequency distortion.​

• Equalization: JIS/NAB standard; tape selector to optimize for SLH vs general tape; mic attenuator with 0/−15/−30 dB switching.​

• Inputs: mic 0.2 mV for low‑impedance microphones; line 0.06 V/100 kΩ.​

• Outputs: line 0.775 V/100 kΩ and 8 Ω headphone, on RCA/DIN connectors depending on market.​

• Facilities: VU meters, 4‑digit tape counter, lockable pause, auto shutoff at tape end, timer‑ready for unattended record/play, reel‑lock system (no separate reel caps), guide‑roller locking for easy threading, and a “vibration prevention” roller to reduce modulation noise.​

Other design details:

• The heads and key tape-path components (capstan, rollers, guides) are fixed on a die-cast base to reduce vibration and improve alignment stability.

• The deck includes a VU meter, tape-type selector (for SLH vs general tape), and recording-equalizer/bias adjustments — giving flexibility to optimize performance depending on tape type.

• It has “soft-start / stable power & bias circuits” designed to reduce click / noise during start/stop, as well as a “vibration-prevention roller” inside the tape-path housing to minimize modulation noise.

Strengths — What the TC-9400A Does Well

• For a consumer/home-level deck, TC-9400A offers surprisingly strong performance: wide frequency response to ~30 kHz (with good tape), relatively stable wow/flutter (~0.07%), and respectable SNR — enough for decent stereo music playback or home-recording tasks.

• The 3-head and 3-motor design allows real-time monitoring (on many decks), and generally ensures a more stable, reliable tape transport compared with simpler 2-motor or idler-wheel decks.

• Ferrite heads + rigid chassis construction — gives durability and long-term reliability (less wear on heads, stable tape-to-head contact) compared to older, softer-head decks.

• The tape-type selector / bias & EQ adjustability adds flexibility: you can optimize for general, SLH or high-quality tapes — important if you mix old and newer tapes.

• Compact but sturdy size (15 kg) — easier to integrate into a home hi-fi rig than large studio-grade machines, yet substantial enough for serious listening or recordings.

⚠️ Limitations & What to Watch Out For (Especially on a Vintage / Used Unit)

• SNR (~53–56 dB) and noise floor are modest by modern standards — expect tape hiss and limited dynamic range, especially with older or lower-quality tapes.

• Quarter-track format (4-track stereo) — not half-track / full-track master-quality; limits the maximum fidelity compared with professional half-track decks or modern digital sources.

• Max reel size is 7″ — relatively small by later standards; limits maximum tape duration per reel (less practical for very long sessions or long-form archival).

• As a vintage deck, wear & maintenance are critical — capstan bearings, belts/pulleys (if any), rollers, head alignment, power-supply caps may all have aged — performance depends heavily on mechanical/electrical condition.

• Original spec is 100 V (Japanese mains) — if you plan to use it elsewhere (e.g. 230 V Europe), needs proper conversion or external transformer. Many vintage units were Japan-spec.

Who TC-9400A Makes Sense For (Today) — Use Cases

TC-9400A remains appealing today if:

• You want a vintage stereo open-reel deck with decent analog performance — good for music playback, casual reel-to-reel listening or home-recording / dubbing projects.

• You plan to digitize or archive old tapes — especially if you have tapes recorded on quarter-track stereo from the 1970s. The deck’s speed, tape-type flexibility and ferrite heads help maximize fidelity.

• You appreciate analog sound character (tape saturation, the “warmth” of analog) and don’t need “audiophile-master” fidelity.

• You are comfortable with servicing / maintenance — checking heads, tape-path alignment, electronics, and basic upkeep, which makes vintage decks viable for modern use.

• You want a relatively compact, manageable reel deck (vs large studio machines) that still delivers stable, respectable playback and recording for its class.
