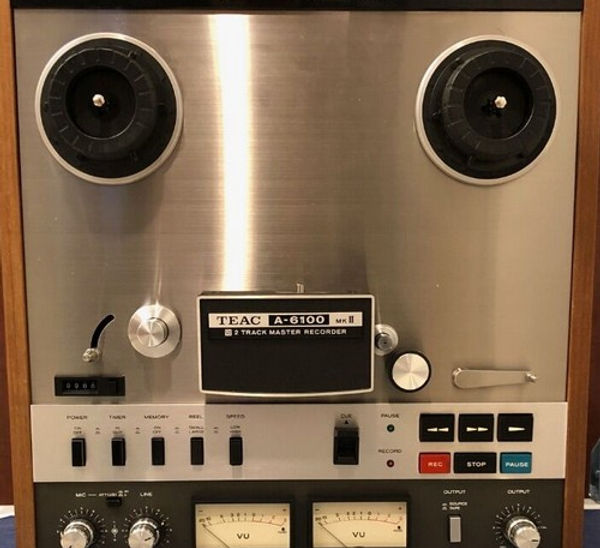

TEAC A-6100 MKII
TEAC
Japan
Tape Deck Details
Number of Motors
3
Number of Heads
4
Head Configuration
Stereo
Wow & Flutter
0.15% at 15 ips
Signal-to-Noise [dB]
55
Dimensions [mm]
440 x 440 x 230
Weight [kg]
20
Year built
1973
Head Composition
Permalloy
Equalization
NAB
Frequency Response
40 Hz to 26 kHz at 15 ips
Speed
7½, 15
Max Reel [inch]
10.5
Tracks
1/2 Rec/Play+1/4PB
Price
User
Semi-Pro
Additional Information
The TEAC A-6100 MKII is a high-quality, semi-professional 2-track, 2-channel stereo reel-to-reel tape deck originally introduced in 1973, designed specifically for mastering applications. It is renowned for its robust construction, exceptional sound quality, and precise tape transport, making it a sought-after machine among audiophiles and mastering engineers.
Track and Head System
2-track, 2-channel stereo/monaural quarter-track format.
Four heads: separate record, playback, erase, and a dedicated playback head for monitoring.
Permalloy heads with precise gap for wide frequency response and low distortion.
Tape Transport and Motors
Three motors: one 2-speed hysteresis synchronous capstan motor and two eddy current induction reel motors for stable tape tension and precise speed control.
Tape speeds: 7½ ips (19 cm/s) and 15 ips (38 cm/s) with ±0.5% speed accuracy.
Supports 7-inch and 10½-inch reels.
Wow and flutter: approximately 0.15% at 15 ips.
Automatic stop and tape tension sensing mechanisms.
Performance Specifications
Frequency response: 40 Hz to 26 kHz at 15 ips.
Signal-to-noise ratio: around 55 dB (weighted).
Total harmonic distortion: low, with excellent linearity.
Crosstalk: high channel separation for clean stereo imaging.
Inputs and Outputs
Balanced and unbalanced line inputs and outputs (RCA and DIN connectors).
Microphone input with mixing capability.
Headphone output.
Adjustable record and playback equalization settings.
Additional Features
Simul-Sync® technology allowing simultaneous monitoring of the recorded signal.
Bias current and equalizer adjustments for various tape formulations.
Large, illuminated VU meters for precise level monitoring.
Robust, indestructible build quality with a solid metal chassis.
Designed specifically for mastering, emphasizing reliability and sonic purity.
Compatible with large reels and professional studio setups.
Controls to fine-tune sound including record/playback EQ settings and tape speed selection.
The A-6100 MKII was the basis for the later TEAC 80-8 multitrack recorder.
Physical Specifications
Dimensions: approximately 440 mm (W) x 440 mm (H) x 230 mm (D).
Weight: around 20 kg (44 lbs).
Power consumption: typical for professional tape decks of the era.
