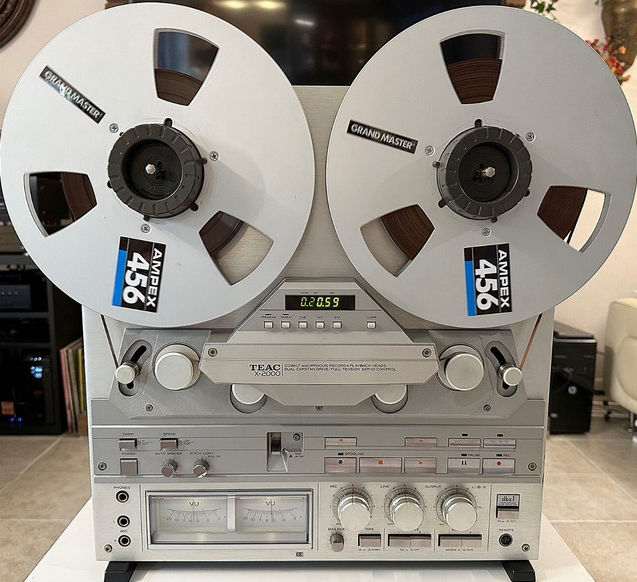

TEAC X-2000

TEAC

Japan

TEAC X-2000

Tape Deck Details

Number of Motors

3

Number of Heads

3

Head Configuration

Stereo

Wow & Flutter

0.05% - 7 1⁄2 ips

Signal-to-Noise [dB]

65

Dimensions [mm]

516 x 472 x 268

Weight [kg]

21

Year built

1984-1994

Head Composition

Permalloy

Equalization

NAB

Frequency Response

At 7½ ips: 30 Hz to 40 kHz (±3 dB)

Speed

3¾, 7½

Max Reel [inch]

10.5

Tracks

​

1/4 Rec/PB

Price

Additional Information

The TEAC X-2000 is a high-fidelity, solid-state reel-to-reel tape deck produced in Japan between 1984 and 1994, designed for serious audiophile and semi-professional use.


  • Track System: 4-track, 2-channel stereo or monaural operation with three heads (erase, record, playback).

  • Tape Speeds: Supports two standard speeds — 3¾ ips (9.5 cm/s) and 7½ ips (19 cm/s) — with ±0.5% speed accuracy.

  • Reel Size: Compatible with 7-inch and 10½-inch reels (Type 17 and Type 26 NAB reels).

  • Heads: Uses Permalloy heads arranged for forward erase, record, and playback.

  • Motors: One FG DC servo capstan motor and two DC slotless reel motors for smooth tape transport.

  • Wow and Flutter: Very low, rated at 0.03% WRMS at 7½ ips and 0.04% at 3¾ ips, ensuring stable playback.

  • Frequency Response:
    At 7½ ips: 30 Hz to 40 kHz (±3 dB)
    At 3¾ ips: 30 Hz to 24 kHz (±3 dB)

  • Signal-to-Noise Ratio:
    65 dB (weighted, 3% THD level) without noise reduction
    Up to 100 dB with dbx noise reduction engaged

  • Total Harmonic Distortion: Approximately 0.8% at 1 kHz (normal operating level).

  • Stereo Separation: About 50 dB at 1 kHz.

  • Inputs and Outputs:
    Line input sensitivity: ~60 mV / 50 kΩ
    Microphone input sensitivity: 0.25 mV / 200 Ω
    Line output: 0.45 V (10 kΩ load)
    Headphone output: 100 mW max into 8 Ω

  • Additional Features:
    dbx I deci-linear noise reduction system for hiss reduction.
    Real-time tape counter.
    Dual caterpillar drive system for reliable tape tension and transport.
    Logic control with remote control capability.
    Autospacer for recording and dubbing.
    Timer operation.
    Fast rewind speed (~100 seconds for 1800 feet of tape).

  • Physical Dimensions and Weight:
    Approximately 516 x 472 x 268 mm (WxHxD)
    Weight: ~21 kg (46 lbs)

  • Build and Design: Silver finish, robust Japanese manufacturing quality typical of mid-1980s TEAC decks.

This model is well-regarded among vintage audio enthusiasts for its sound quality, build, and feature set, representing TEAC’s strong presence in the high-end consumer reel-to-reel market during the 1980s and early 1990s
