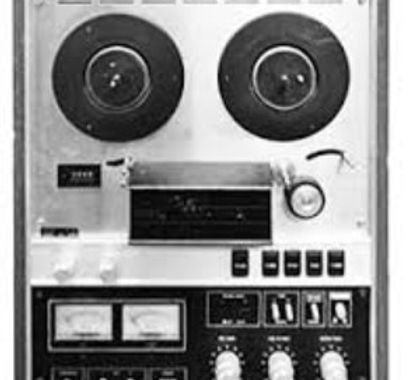

Technics RS-714US

The RS-714US predates Technics’ legendary direct-drive machines and uses a conventional belt-driven transport, aimed at serious home users rather than broadcast or studio environments.

Transport Design

• Conventional tape transport

• Mechanical push-button control

• Manual tape threading

• No isolated loop or electronic tension control

Motors

• 2-motor design
  Belt-driven capstan motor
  Single reel motor with mechanical torque distribution

• Typical of early-1970s Japanese consumer decks

This transport is not quartz-locked and does not match the speed stability of later Technics designs.

Head Configuration

• 3-head system
  Erase
  Record
  Playback

Track Format

• ¼-track (4-track) stereo
  Records and plays both directions
  Compatible with most consumer prerecorded tapes

Recording & Control Features

• Manual record level controls

• Mechanical VU meters

• Source / tape monitoring

• Basic bias optimized for contemporary tape formulations

• No built-in oscillator or advanced calibration facilities

Inputs & Outputs

• Unbalanced RCA line inputs and outputs

• Microphone inputs (front or rear panel)

• Headphone output

• No balanced connections

• No remote control capability

Reputation & Legacy

• Solid example of early Technics build quality

• Not considered a “legendary” Technics deck

• Important historically as a predecessor to the RS-1500 family

• Valued more for:
  Vintage appeal
  Matching early-1970s Technics systems
  Light consumer playback

Collectability & Current Status

• Moderately collectible

• Value depends on:
  Mechanical condition (belts, idlers)
  Head wear
  Cosmetic condition

• Less sought after than RS-630 / RS-1500 series

• Best suited today for:
  Playing consumer prerecorded tapes
  Vintage system restoration
