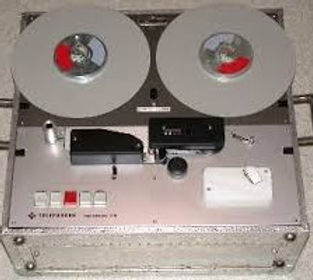

AEG/Telefunken Magnetophon M12

The AEG Telefunken Magnetophon M12 is a professional portable studio-grade open-reel tape recorder from the mid-1970s, produced around 1973–1982 by Telefunken under AEG's Magnetophon division in Germany. Designed for field and mobile studio use, it featured a modern "timeless" aesthetic with transportable construction, though its substantial weight made it a two-person lift even without the required external mixer and monitor amp.

Key Technical Specifications

• Track System: 2-track stereo / half-track mono (¼-inch tape)

• Tape Speeds: 7½ ips (19 cm/s), 15 ips (38 cm/s), 30 ips (76 cm/s)

• Maximum Reel Size: 10.5 inches (26.7 cm) NAB hubs

• Heads: 3-head configuration (erase, record, playback) with permalloy/Alfenol laminations

• Motors: 3-motor transport — dual capstan (hysteresis synchronous), reel motors with electronic tension control

• Frequency Response: 30 Hz–22 kHz (±2 dB) at 15 ips; extended at 30 ips

• Wow and Flutter: <0.12% at 15 ips

• Signal-to-Noise Ratio: >58 dB (CCIR weighted)

• Total Harmonic Distortion: <1.5% at 0 VU

• Electronics: Solid-state with modular preamps; external V396/V397 mixer/monitor rack required for full operation

• Inputs/Outputs: Balanced XLR (line/mic level), DIN; professional studio interfacing

• Equalization: NAB/IEC with automatic tape-type compensation

• Features:
  Transportable design with handles (despite 50+ kg weight)
  Variable tension for NAB/CCIR reels
  Front-panel calibration controls
  Stroboscopic speed verification

• Power Requirements: 220–240 V AC

• Dimensions: Approx. 650 x 500 x 350 mm (25.6" x 19.7" x 13.8")

• Weight: ~55–65 kg (121–143 lbs) transport alone

• Build: Heavy-duty rackmount chassis with wooden side panels; required external electronics rack

Variants and Context

• M12A: Primary production model (1978–1982)

• Part of Telefunken's M-series professional lineage (M5, M10, M15, M21)

Priced as semi-pro studio equipment (~DM 5,000+ new), the M12 prioritized mechanical excellence and field reliability over consumer conveniences. Its double-capstan design ensured consistent tape path/tension, while high speeds delivered broadcast-quality results. Modern examples are rare; restoration addresses belt aging, head wear, and electronics recap. Successor to the M10, it bridged AEG/Telefunken's golden era with late-1970s solid-state sophistication—prized by collectors for mobile studio heritage.
