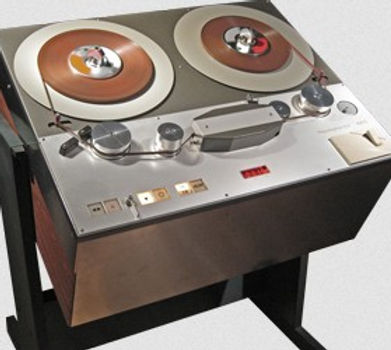

AEG/Telefunken Magnetophon M15

The AEG Telefunken Magnetophon M15 (also M15A) is a professional studio-grade open-reel tape recorder from 1971–1977, produced by Telefunken under AEG's Magnetophon division in Germany. Designed for broadcast, TV, and record industry master recording, it featured a legendary tape transport with dual capstan design and modular solid-state electronics supporting mono, stereo, pilot-tone sync, and timecode operation.

Key Technical Specifications

• Track System: 4-track 2-channel stereo (configurable for mono, 2-track, or quadraphonic 1/2" tape variants)

• Tape Speeds: 7½/15 ips or 15/30 ips (configurable); optional 7½/30 ips combinations

• Maximum Reel Size: Up to 12.5" (31.5 cm) metal NAB reels or pancakes

• Heads: 3-head configuration (erase, record, playback) — Vacodur or permalloy with exceptional longevity

• Motors: 3 motors — dual hysteresis synchronous capstans (pre/post headblock) + reel motors

• Frequency Response:
  30Hz–16kHz (±1.5dB) at 15 ips
  60Hz–20kHz (±1.5dB) at 30 ips

• Wow and Flutter: 0.03% (15 ips); <0.15% typical

• Signal-to-Noise Ratio: 65dB (stereo, A-weighted, 400nWb/m reference); up to 70dB full-track

• Total Harmonic Distortion: <1% at 0 VU (400nWb/m); <1.5% peak

• Crosstalk: >48dB

• Electronics: Solid-state modular amplifiers (plug-in cards); click-free switching via ramped control voltages

• Inputs/Outputs: Balanced XLR (+6/+15dBm nominal, +24dBm max); min 5kΩ input impedance

• Erase/Bias: 131kHz quartz-referenced

• Equalization: NAB/CCIR switchable

• Features:
  Instant electronic stop at tape end
  Remote control via optional plug-in unit
  Vari-Speed SZ15A (±50% speed variation)
  Mono/stereo electronic switching
  Digital timer display (H:Min:Sec)

• Power: 190 VA max; +5°C to +45°C operation

• Dimensions: 308 x 645 x 525mm (W x D x H)

• Weight: 53kg (117 lbs)

Variants and Context

• M15A: Primary production model (1971–77) with 7½/15 ips standard

• M15A-30: High-speed 15/30 ips configuration

• M15A Preview: Variable speed/pitch control

• M15A-Q: Quadraphonic (1/2" tape)

• SYNC/TIMECODE versions: Pilot tone (50/60Hz) or SMPTE timecode

Priced as professional studio equipment (~DM 8,000+ new), the M15A competed directly with Studer A80 and Ampex, earning acclaim for its transport reliability, flat frequency response, and low distortion. The dual-capstan design eliminated speed variations across the tape width, while modular electronics simplified maintenance. Modern restorations focus on recap, head alignment, and pinch roller replacement.

Legacy

Widely used in European broadcast and classical recording; restored examples remain reference playback machines for audiophiles seeking "master tape" sound. The M15A transport is legendary—many consider it Telefunken's mechanical pinnacle before the M20/M21 evolutions.
