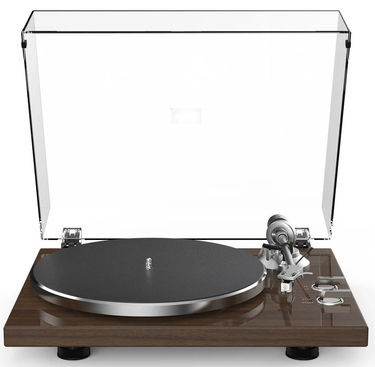

Audio Keeper HQKZ-006

Drive System:
Type: Belt drive

Speeds:
Playback Speeds: 33⅓ rpm, 45 rpm
Speed Variance: ±1.5%

Platter:
Material: Aluminum
Thickness: 15 mm

Tonearm:
Type: Straight, high-quality aluminum
Length: 8.6 inches (218.5 mm)
Features: Adjustable counterweight, anti-slip function, optimized for tracking accuracy and minimal distortion

Cartridge:
Model: Audio-Technica ATN-3600L moving magnet
Stylus: Diamond stylus, recommended tracking force: 3.0±0.5 g (range: 3.0–6.0 g)
Frequency Response: 20 Hz–20 kHz
Output Voltage: 2.5 mV
Channel Balance: <2.5 dB
Channel Separation: >18 dB
Recommended Load Resistance: 47 kΩ

Bluetooth Connectivity:
Version: Bluetooth 5.3
Range: ≤10 meters

Output:
RCA: Analog output for wired connection
Bluetooth: Wireless output for streaming to compatible devices

Built-in Preamp:
Switchable: Yes, for direct connection to line-level inputs

Auto-stop Function:
Automatic Stop: Yes, when the record finishes playing

Power Supply:
Adapter: 12V/500mA AC-DC
Input: 100–240V, 50/60Hz, max 200mA

Power Consumption: 5 W

Base:
Material: Wooden (MDF)
Thickness: 25 mm

Feet:
Height: 28 mm

Weight: 13.67 lbs (6.2 kg)

Dimensions:
Lid Closed: 415 x 345 x 130 mm
Lid Open: 415 x 405 x 390 mm
Without Lid: 415 x 345 x 53 mm

Dust Cover:
Size: 410 x 345 x 70 mm

Wow and Flutter: ≤0.15%

Signal-to-Noise Ratio: 55 dB
