Turntable Details
Drive
Belt
Motor
DC
Wow & Flutter %
Rumble [dB]
Speed
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
Platter Weight [kg]
Plinth Material
Price
Additional information

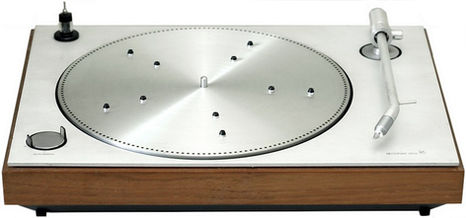

Manufactured: 1974–1975
Designer: Jacob Jensen
Type Numbers: 5239, 5243
Drive System: Idler wheel and belt, asynchronous motor
Speeds: 33⅓ and 45 rpm, automatically selected based on record size (7", 10", or 12")
Operation: Fully automatic—select record size, press a button; the turntable sets the speed, lowers the arm, and at the end, returns the arm and switches off.
Pickup Arm: Ball-bearing system for smooth movement
Cartridge: SP 14A, with a spherical diamond stylus
Stylus Pressure: 2 g (adjustable range: 0–3.5 g)
Frequency Response: 20–20,000 Hz (±3 dB)
Distortion: <1%
Wow and Flutter: <±0.15% (DIN), or approx. ±0.06% (RMS)
Rumble: >37 dB (DIN A), >58 dB (DIN B)
Suspension: Pendulum suspension for excellent vibration isolation
Platter: Brushed aluminum resting on a steel platter
Output: Stereo, DIN 5-pin
Power Supply: 110–130–220–240 V AC, 50 Hz, 10 W
Dimensions: 440 x 120 x 330 mm (W x H x D)
Weight: 7.2 kg
Accessories: Transparent dust lid, spindle adapter for centerless records
Color Options: Rosewood, teak, or white frame; chassis in brushed aluminium
