Turntable Details
Drive
Belt
Motor
DC
Wow & Flutter %
0.03
Rumble [dB]
-80
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
5.30
Linear
1991
Platter Weight [kg]
Plinth Material
Price
£405
Additional information

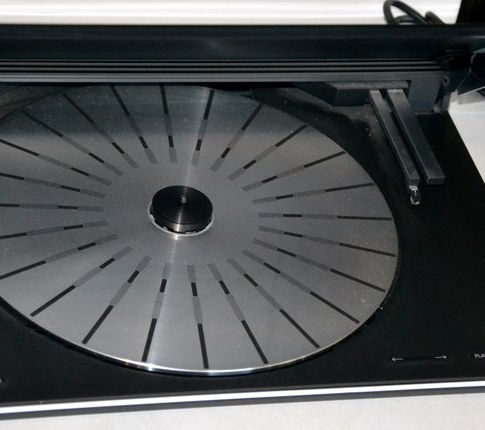

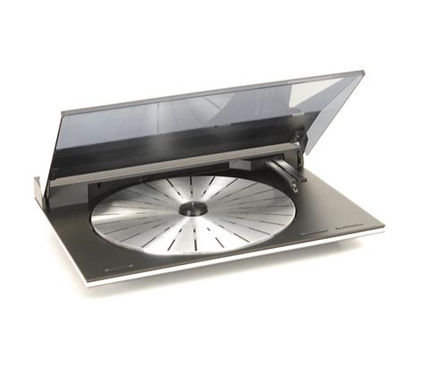

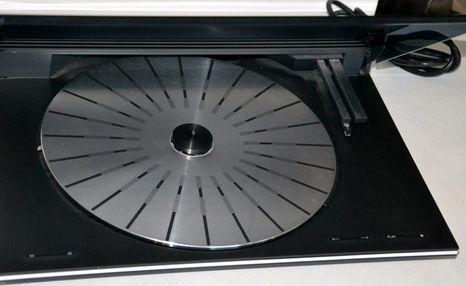

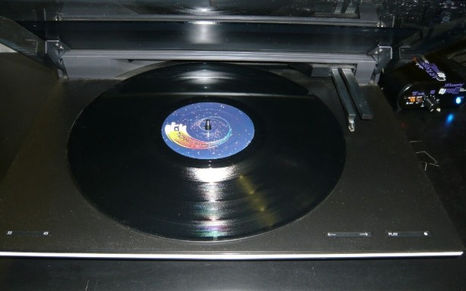

The Bang & Olufsen Beogram 9500 (Type 5969) is a 100V variant designed for the Japanese market, produced from 1989 to January 1994. It is part of the Beogram 9500 series, known for its advanced tangential tracking technology, servo-controlled drive, and elegant design by Jacob Jensen.
Core Technical Specifications
Manufacture Years: 1989–January 1994
Type Number: 5969 (100V Japan)
Playback Speeds: 33⅓ and 45 rpm
Speed Deviation: Less than ±0.2%
Wow and Flutter (DIN): Less than ±0.06%
Rumble (DIN Weighted): Greater than 80 dB
Rumble (DIN Unweighted): Greater than 55 dB
Power Consumption: Less than 10 W
Dimensions (W × H × D): 42 × 7.5 × 32.5 cm
Weight: Approximately 5.3 kg
Pickup Cartridge: MMC 2
Tonearm: Tangential with optimum pivot point suspension
Motor: Servo-controlled DC motor
Link Compatibility: Supports Bang & Olufsen Data Link for integration with other system components
Finish: Polished aluminium finish matching the design of the Beocenter 9500
Features and Highlights
Tangential Tracking: Electronic tangential arm plays records at the precise angle cut, dramatically reducing distortion and groove wear.
Advanced Suspension System: Patented chassis and tonearm suspension protect from external vibrations for pristine audio quality.
Remote Control Operation: Fully compatible with Beocenter 9500 remote control.
Design: Sleek, square-shaped chassis with polished metal finish, coordinated with Bang & Olufsen high-end audio systems.
Cartridge: MMC 2 cartridge with low stylus pressure (~1.2 g) ensures high fidelity while preserving vinyl.
