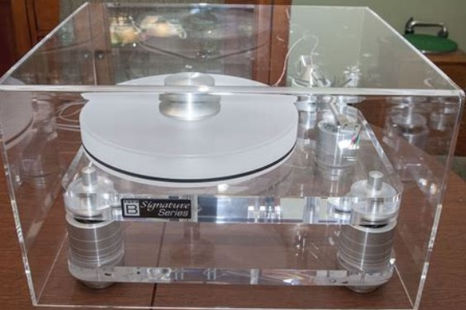

Basis Audio Basis 2200

The Basis Audio 2200 Turntable is a high-performance analog playback system designed to deliver exceptional sound quality and precision. It incorporates advanced engineering techniques and innovative design features that enhance its performance, making it a preferred choice for audiophiles.

Design and Construction

• Platter and Bearing: The 2200 features a solid block of stress-relieved acrylic for its platter, which is machined to ensure optimal performance. This platter is supported by a high-precision oil-well bearing, known for its smoothness and quiet operation. The bearing's final machining occurs after assembly, allowing for perfectly centered support, which contributes to the turntable's speed stability and clarity of sound. The bearing clearance is held to an impressive precision of one ten-thousandth of an inch (0.0001 inches), significantly enhancing its performance compared to standard designs.

• Plinth: The turntable is built on a robust plinth that provides excellent isolation from external vibrations. This construction helps maintain sonic integrity, allowing for accurate sound reproduction without interference from the environment.

Suspension System

The Basis 2200 employs an innovative fluid-damped suspension system, featuring what are termed Resonance Annihilators. These isolators convert vibrational energy into heat, effectively eliminating unwanted energy fed into the subchassis by the tonearm. This design allows for a close proximity between the tonearm and isolator, ensuring immediate damping of any vibrations, which results in a direct and clear sound signature.

Motor and Drive System

• Motor: The turntable utilizes an AC synchronous instrument motor, modified with a custom magnet assembly to enhance power delivery and reduce noise. This motor is isolated from the turntable chassis using elastomer isolators, further minimizing any potential vibration transfer.

• Drive Mechanism: The 2200 features a high-quality belt drive system that ensures exceptional speed stability and eliminates cogging. This results in unwavering musical notes and coherent sound reproduction across various frequencies.

Performance Characteristics

• Isolation Performance: The Basis 2200 offers 48 dB greater isolation from motor noise compared to non-suspended systems, allowing musical details to unfold with remarkable clarity and realism. This superior isolation contributes to a listening experience that combines delicacy, immediacy, and dynamic range.

• Optional Features: The turntable can be equipped with additional components such as the Vector 4 or SuperArm 9 tonearms, along with accessories like the Calibrator Base, Reflex Clamp, and Revolution Belt, which further enhance its performance capabilities.

Technical Specifications

• Overall Dimensions: 16.7 inches wide x 15 inches deep x 5.5 inches tall

• Weight: Approximately 35 pounds (shipping weight around 42 pounds)

• Finishes Available: Clear acrylic with silver accents
