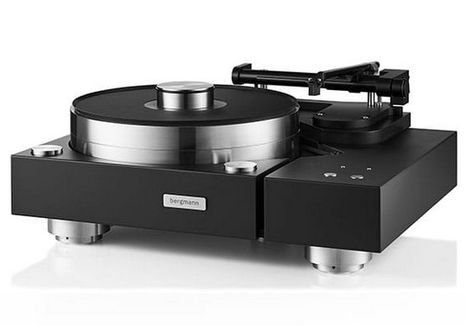

Bergmann Audio Galder Signature

The Bergmann Audio Galder Signature turntable is a high-end, air-bearing design engineered for maximum performance and flexibility in a modern audiophile system.

• Airbearing Design:
  Platter: Centered by a steel spindle running in a low-friction, hard-wearing polymeric bearing, the platter floats on a thin air cushion, minimizing mechanical noise and providing excellent isolation from external vibrations.
  Tonearm: Linear tracking air-bearing tonearm (Odin Signature or other compatible arms) rides on a frictionless air cushion, eliminating tracking error and mechanical feedback.

• Plinth and Construction:
  Material: CNC-machined die-cast aluminum (plinth and motorbase), finished in Black Velvet paint.
  Base Plate: 10 mm aluminum, providing a stable foundation.
  Feet: Stainless steel and ceramic ball construction (three upper ceramic balls on one larger lower ceramic ball), ensuring perfect contact and vibration isolation regardless of surface.

• Motorbase:
  Motor: DC tacho motor with high-precision motor control electronics, ensuring extremely accurate speed (measured speed variation: 0.0027%).
  Placement: Decoupled from the plinth, always aligned regardless of foot adjustment.

• Tonearm Compatibility:
  Up to 4 Tonearms: Accepts both radial and linear tracking arms, with provisions for air-bearing tonearms.

• Vacuum Hold Down:
  Record Clamping: Vacuum hold-down system (or clamp) secures the record to the platter for improved contact and reduced resonance.

• Air Supply System:
  Remote Control: Air supply is remote-controlled from the motorbase; pressing the speed button activates the air supply, and a second press starts the platter spinning.
  Shutdown: Air supply automatically turns off two minutes after stopping the platter.
  Filter: Replaceable dust filter ensures clean, dry air.
  Reservoir: Encapsulated reservoir absorbs pump impulses for smooth, silent airflow.

• Dimensions and Weight:
  Dimensions: 390 mm (D) × 420 mm (W) × 210 mm (H).
  Weight: 30 kg.

Tonearm (Odin Signature)

• Type: Linear tracking air-bearing tonearm.

• Construction: Aluminum/carbon arm tube with internal damping; counterweight decoupled from the arm tube.

• Adjustments: VTA, overhang, azimuth, leveling, and tracking force.

• Wiring: High-quality copper Litz wire, gold-plated copper clips, DIN connector.

• Effective Mass: 14 g.

• Weight (including armboard): 1.18 kg.

Air Supply System

• Pump: Oil-free, long-life, low-maintenance unit.

• Filter: Replaceable dust filter.

• Reservoir: Absorbs pump impulses for smooth airflow.

• Output: Provides air for both platter and tonearm air bearings.

Additional Features

• Back Panel: Grounding, air input, vacuum input, tonearm output, and air adjustment valves for platter and tonearm.

• User Experience:
  Easy Operation: Start/stop and speed selection via remote control.
  Maintenance: Minimal due to air-bearing and oil-free pump design.

• Aesthetics: Sleek, modern design with premium materials and finishes
