Turntable Details
Drive
Belt
Motor
DC
Wow & Flutter %
Rumble [dB]
Speed
33, 45, 78
Dimensions [mm]
Platter Material
Synthetic
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
60.00
Linear
Platter Weight [kg]
Plinth Material
Price
Additional information

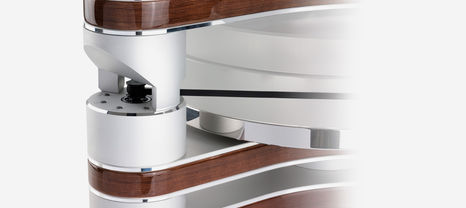

The Clearaudio Master Innovation turntable is a high-end audio component designed for exceptional vinyl playback. Here are its key technical specifications and features:
Construction and Design
Resonance-optimized chassis with a three-point star-shaped design
Made of Panzerholz (bulletproof wood) and aluminum with precision CNC machined surface
Total weight: Approximately 60 kg (without tonearm and power supply)
Dimensions (W/D/H): 460 × 485 × 396 mm (18.11 × 19.09 × 15.59 inches) with tonearm base, without tonearm
Platter and Drive System
70 mm thick main platter made of high-density synthetic material with excellent dimensional stability
15 mm thick precision-machined stainless steel sub-platter
No-contact magnetic drive system with multiple platters
Belt-driven lower platter connected to a high-torque 24V DC motor
Speed options: 33 1/3, 45, and 78 rpm
Speed accuracy: < ±0.05%
Bearing Technology
Clearaudio patented Ceramic Magnetic Bearing (CMB) in main platter/upper drive platter assembly
Inverted bearing in lower drive platter
Speed Control
Optical Speed Control (OSC) using an infrared sensor for real-time speed monitoring and adjustment
Additional Features
Ability to mount up to three tonearms
All turntable feet are finely adjustable
Available in various finishes, including black and wood chassis options
