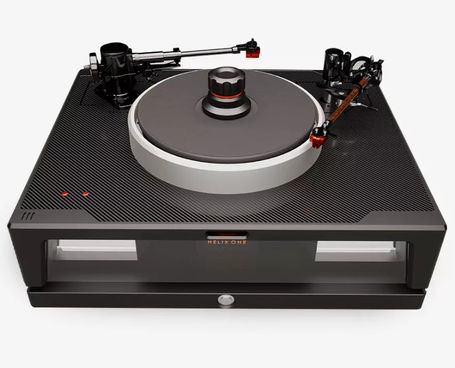

Dohmann Audio Helix One MK3

The Dohmann Audio Helix One MK3 turntable is a high-end audio device designed for exceptional performance in analog playback. It features several advanced technologies and design elements to minimize unwanted vibrations and optimize sound quality. Here are some key specifications and features:

• Speed Control: The turntable constantly calibrates speed over 130,000 times per second to deliver precise 33.33 or 45.15 rpm. It also offers simple user-adjustable speed control via two intuitive push buttons on the rear of the main chassis.

• Drive System: It uses a fully integrated Swiss-manufactured high torque motor that is decoupled to reduce static electricity and vibrations. The dual-belt platter drive further enhances this feature.

• Tonearm Facilities: The Helix One MK3 can mount two tonearms up to 12 inches (305mm) simultaneously, providing flexibility for different audio setups.

• Armboards: The turntable comes with two armboards: an advanced composite armboard for the main tonearm and a standard solid aluminum armboard for the second tonearm facility. These armboards are removable and allow for easy interchange and calibration.

• Finishes: Available in titanium or black finish, all Helix One MK3 turntables feature a carbon fiber top plate.

• Power Options: It supports both 110-120 VAC, 50/60Hz and 220/240 VAC, 50/60 Hz power options.

• Dimensions: The dimensions without clamp or tonearm are 600mm (W) x 480mm (D) x 250mm (H) or 23.6 inches (W) x 18.9 inches (D) x 9.8 inches (H).

• Weight: The main chassis weighs 54kg (119 pounds), the PowerBase weighs 22kg (49 pounds), and the total weight is 76 kg (168 pounds).

The Helix One MK3 was designed with the objective of creating the ultimate turntable system, incorporating unique design features and technologies such as a fully integrated MinusK vibration isolation system and a mechanical crossover network designed to dissipate mid and high-frequency vibrations.
