AMG Giro

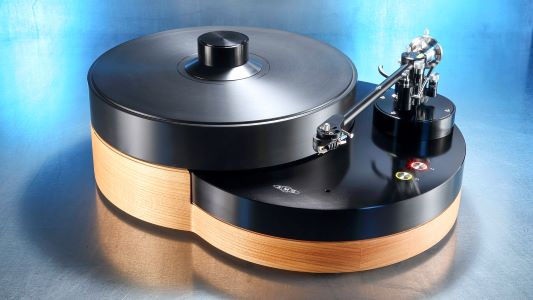

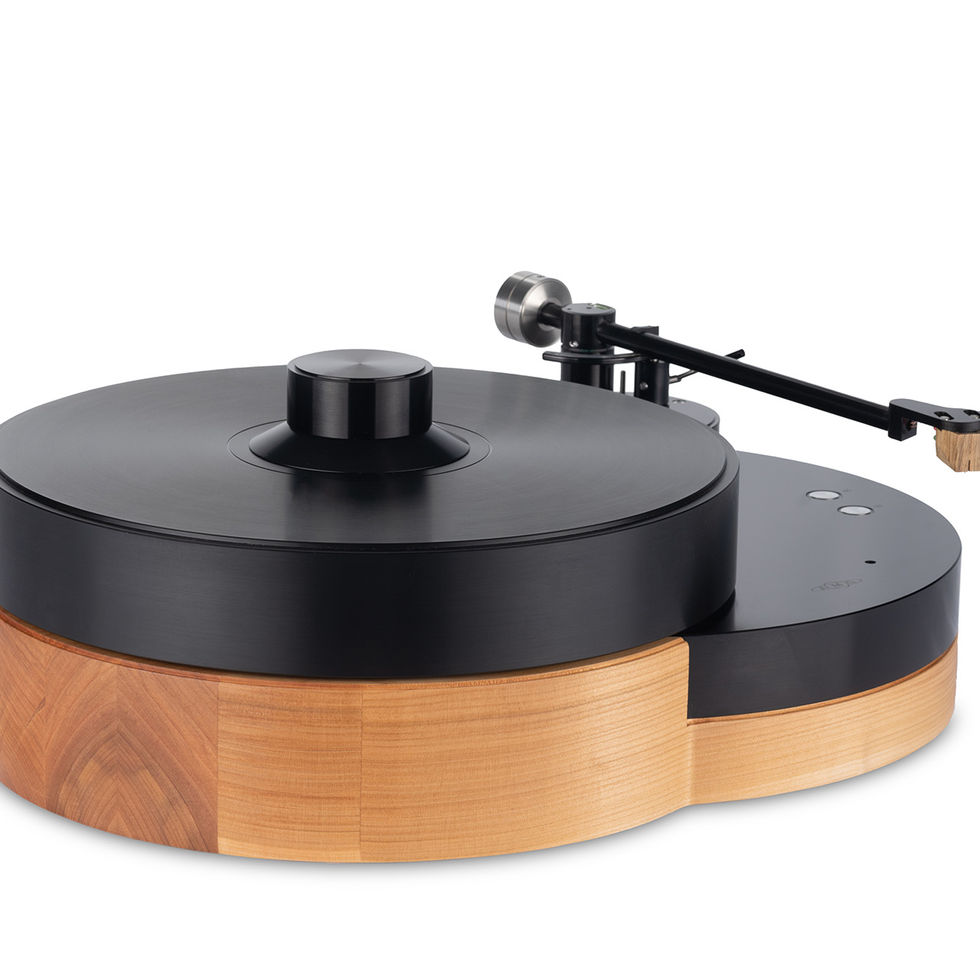

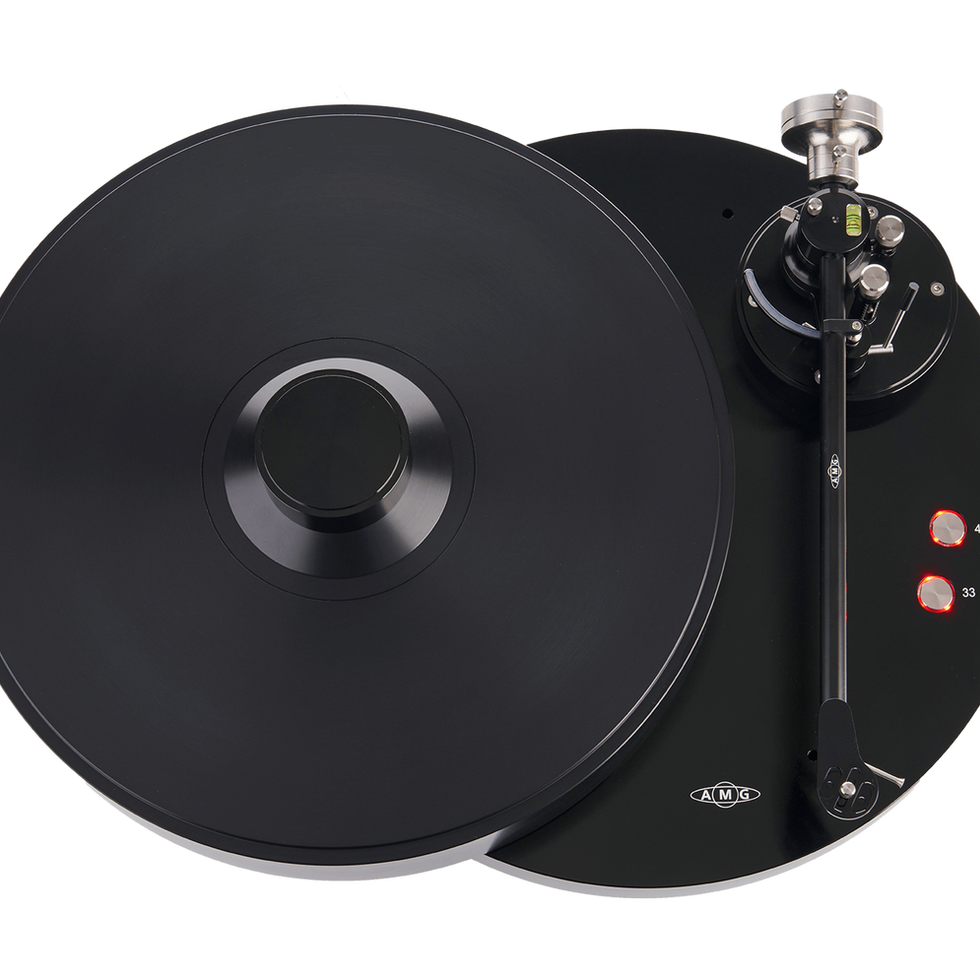

The AMG Giro turntable is a high-performance, belt-driven audio device designed for audiophiles seeking exceptional sound quality and precision engineering. This model, part of the Analog Manufaktur Germany lineup, features advanced technologies that enhance its performance and usability.

Key Specifications

• Drive System:Type: Quartz-controlled belt drive
  Motor: 12 V motor sourced from Swiss production, optimized for low noise and high stability


• Speed Options:Supports playback at 33 1/3 RPM and 45 RPM
  Fine speed adjustments can be made without tools


• Platter:Material: High-density POM (Polyoxymethylen-Polymer)
  Diameter: 304 mm
  Weight: 5.6 kg, contributing to improved speed stability and dynamic performance
  Design Features: Newly developed platter-subplatter interface enhances synchronization stability


• Performance Metrics:Wow and Flutter: Less than 0.05%, indicating minimal speed variation during playback
  Rumble: Better than -70 dB, ensuring low background noise

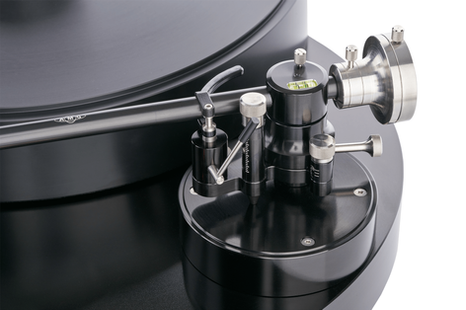

Tonearm

• Type: AMG 9W2 tonearm, a 9-inch design known for its precision and ease of use

• Effective Length: 229 mm

• Overhang: 18.1 mm

• Offset Angle: 24.07 degrees

• Effective Mass: Approximately 9.1 g

• Features:Dual-pivot bearing design allows for fine azimuth adjustment while eliminating bearing play
  Magnetic anti-skating mechanism for improved tracking accuracy
  Tool-free VTA adjustment during play, aided by a built-in bubble level


Build Quality

The chassis of the AMG Giro is constructed from high-density aerospace aluminum with an eloxal coating, providing both durability and aesthetic appeal. The turntable weighs approximately 12.8 kg, ensuring stability during operation. It features three adjustable spikes for leveling, which can be fine-tuned from above the chassis.

Unique Features

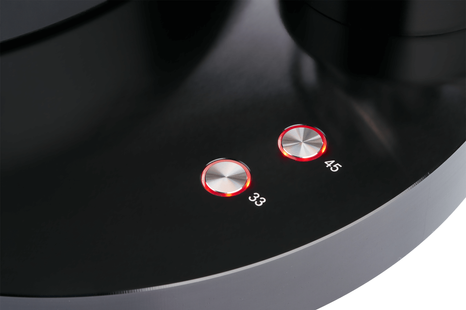

Capacitive Touch Controls: The turntable operates via touch-sensitive buttons that allow for easy speed selection and adjustments.

• Decoupled Spindle/Bearing Design: This design minimizes vibration transfer, enhancing sound quality.

• Hydrodynamic Bearing System: The platter bearing utilizes a high-precision plain bearing with a hardened steel spindle shaft, ensuring smooth operation.

Conclusion

The AMG Giro turntable represents a sophisticated blend of advanced engineering and user-friendly features. Its robust construction, precision components, and innovative design make it an excellent choice for audiophiles looking to enhance their vinyl playback experience. With its combination of aesthetic appeal and high-performance capabilities, the Giro stands out as a premium option in the high-end turntable market.
