1byOne H004

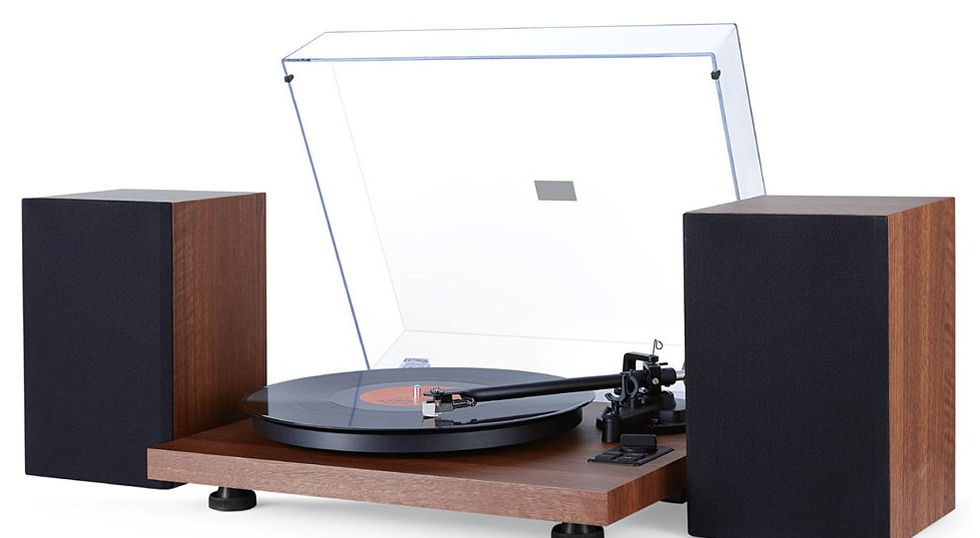

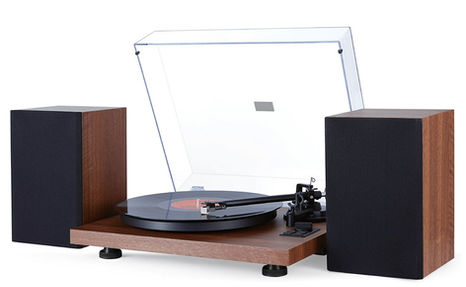

The 1byone H004 is a belt-drive manual turntable system that includes a pair of 36-watt Bluetooth bookshelf speakers, designed as an all-in-one hi-fi vinyl playback solution with digital conversion capabilities.

Technical Overview

Drive and Motor:

• Belt-driven with a low-noise DC motor.

• Rotation speeds: 33⅓ and 45 RPM.

• Wow and flutter: ±0.15%.

• Signal-to-noise ratio: approximately 65 dB.

Platter:

• Heavy iron platter weighing about 1644 grams.

• Diameter: 28 cm.

• Designed for stable and accurate rotation with minimized vibration.

Tonearm and Cartridge:

• Static balanced straight tonearm with 22 mm overhang.

• Moving Magnet cartridge: Audio-Technica AT3600L pre-mounted.

• Tracking force adjustable from 0 to 6 grams.

• Anti-skating mechanism included.

• Effective tonearm length: 8.6 inches (218.5 mm).

Connectivity and Features:

• Built-in phono preamp with switchable phono/line output.

• USB port for vinyl-to-MP3 digital recording.

• Bluetooth receiver built-in to stream music from external devices to the speakers.

• Comes with two Bluetooth bookshelf speakers (4" woofer and 2" tweeter, 36W total output).

• Dust cover included.

• Manual operation with play/stop and speed selector buttons.

Audio Performance:

• Frequency response: 20 Hz to 20 kHz.

• Channel balance: <2.5 dB.

• Channel separation: >18 dB.

• Output voltage: 2.5 mV.

• Recommended tracking force: 3.5 ± 0.5 grams.

Physical Dimensions and Weight:

• Turntable dimensions (lid closed): 16.34" x 14.17" x 5.51" (415 x 360 x 140 mm).

• Weight: approximately 9.5 kg (20.9 lbs).

• Speaker dimensions: about 6.3" x 6.2" x 9.8" (160 x 158 x 249 mm), weight around 3.8 kg (8.4 lbs) each.
