Turntable Details
Drive
Belt
Motor
AC
Wow & Flutter %
0.13
Rumble [dB]
-57
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
9.10
Linear
Platter Weight [kg]
1.10
Plinth Material
Price
Additional information

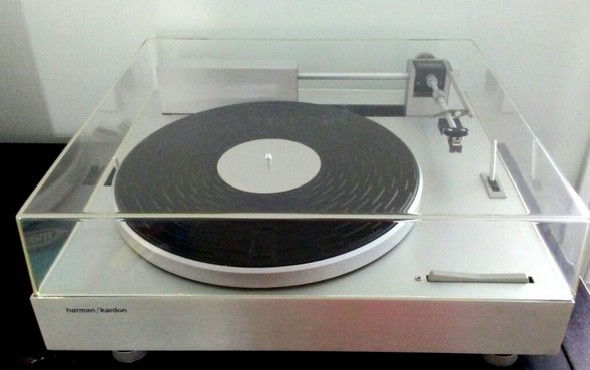

The Harman Kardon ST6, also known as the Rabco ST6, is a linear-tracking turntable designed for high-fidelity audio reproduction. Below are the detailed specifications:
General Specifications
Type: Linear tracking turntable
Drive Method: Belt drive
Motor: DC servo motor
Speeds: 33 1/3 RPM and 45 RPM
Dimensions: 419 mm (W) x 157 mm (H) x 413 mm (D)
Weight: 9.1 kg (approximately 20 lbs)
Performance Specifications
Wow and Flutter: 0.05% WRMS
Rumble: -70 dB
Tonearm Specifications
Tonearm Type: Linear tracking tonearm
Tracking Force: Adjustable from 1.0 to 2.5 grams
Design Features
The ST6 features a unique linear tracking mechanism that minimizes tracking distortion and enhances sound quality by allowing the stylus to follow the grooves of the record more accurately.
It includes an automatic lift feature that raises the tonearm at the end of playback, protecting both the stylus and records.
The turntable is equipped with adjustable feet for leveling, which is crucial for optimal performance.
Additional Features
The ST6 has a robust construction aimed at minimizing vibrations and ensuring stable playback.
It typically includes a strobe light for speed confirmation and adjustment.
