Turntable Details
Drive
Belt
Motor
DC
Wow & Flutter %
0.08
Rumble [dB]
-65
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
10.40
Linear
Platter Weight [kg]
1.20
Plinth Material
Price
Additional information

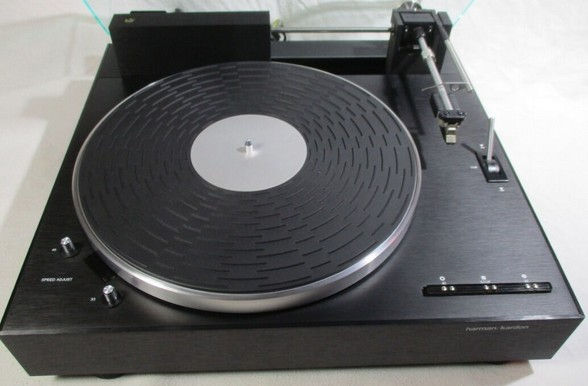

The Harman Kardon ST8, also known as the Rabco ST8, is a linear tracking turntable designed for high-quality audio reproduction. Here are the detailed specifications:
General Specifications
Type: Linear tracking turntable
Drive Method: Belt drive
Motor: DC servo motor
Speeds: 33 1/3 RPM and 45 RPM
Dimensions: 440 mm (W) x 140 mm (H) x 360 mm (D)
Weight: Approximately 6.3 kg (14 lbs)
Performance Specifications
Wow and Flutter: 0.05% WRMS
Rumble: -70 dB
Tracking Force: Adjustable from 1.0 to 2.5 grams
Tonearm Specifications
Tonearm Type: Linear tracking tonearm
Cartridge Compatibility: Designed for cartridges weighing up to 10 grams (can accommodate some up to 15 grams with shims)
Design Features
The ST8 features a unique mechanical design where the tonearm's movement is directly linked to the platter's rotation, ensuring precise tracking.
It includes a stroboscope for speed adjustment and visual confirmation of platter speed.
The turntable is equipped with adjustable leveling feet to ensure stability on various surfaces.
Additional Features
The ST8 has an automatic lift mechanism that raises the tonearm at the end of playback.
It features a minimalist aesthetic with a sleek design, making it visually appealing in any audio setup.
