Turntable Details
Drive
Belt
Motor
Wow & Flutter %
0.04
Rumble [dB]
-68
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
7.00
Straight
Platter Weight [kg]
1.00
Plinth Material
Price
Additional information

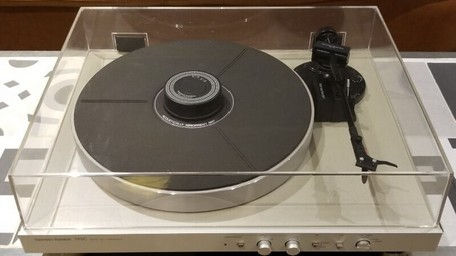

The Harman Kardon T45 is a semi-automatic turntable designed to deliver high-quality audio performance with an emphasis on acoustic isolation. Below are the detailed technical specifications:
General Specifications
Type: Semi-automatic record player
Drive Method: Belt drive
Speeds: 33 and 45 RPM
Dimensions: 440 mm (W) x 145 mm (H) x 375 mm (D)
Weight: 7.0 kg (approximately 15.4 lbs)
Performance Specifications
Wow and Flutter: 0.04% WRMS
Rumble: -68 dB
Design Features
The T45 features a solid wood base constructed from 1 1/4" particle board, which helps eliminate unwanted vibrations.
It has spring-isolated, foam-damped feet, providing a low fundamental suspension resonance of approximately 4.5 Hz.
A 2.2-pound massive platter enhances sonic quality and stability.
The turntable includes an optically-sensed auto-lift tonearm, which minimizes unwanted vibrations by eliminating the need for a return mechanism.
A high-loss rubber platter mat absorbs vibrations, while a disc stabilizer secures the record against the mat to further reduce movement.
Additional Features
The T45 includes capacitance trim to optimize cartridge performance.
It features gold-tipped removable phono cables for improved conductivity and reduced signal loss.
The tonearm base is equipped with minimum friction microrace bearings for enhanced tracking precision.
