Turntable Details
Drive
Direct
Motor
Wow & Flutter %
Rumble [dB]
Speed
33, 45, 78
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
Platter Weight [kg]
Plinth Material
Price
Additional information

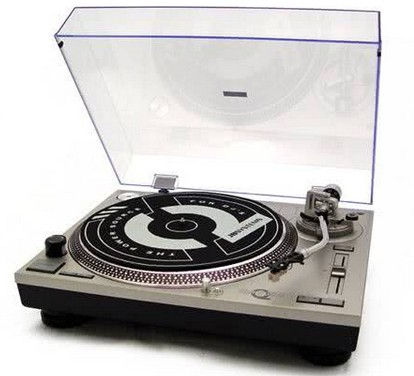

The JB Systems High Q30D turntable is a direct drive turntable.
Motor: It uses an 8-pole, 3-phase, brushless DC motor.
Speeds: It supports 33 1/3, 45, and 78 RPM speeds with quartz lock.
Pitch Adjustment: Offers two pitch adjustment ranges: +/-10% and +/-20%.
Starting Torque: More than 1.6 kgf/cm.
Starting Time: Less than 1 second.
Braking Time: Less than 1 second.
Wow & Flutter: Less than 0.2% WRMS (JIS WTD).
Tone Arm: Features a static balanced S-shaped tone arm.
Tracking Error Angle: Less than 3°.
Cartridge Weight: Supports cartridge weights from 6 to 10g.
Anti-skate Range: 0~7g.
Power Supply: 230V~ 50Hz.
Power Consumption: 13 Watts.
Dimensions: 450 x 352 x 157mm (WxDxH).
Weight: 10.6kg.
The turntable also has features like fast start/stop, forward/reverse play, a selectable phono/line output, and a retractable target light. It includes an Audio Technica cartridge and an all-metal S-shaped tone arm assembly with counterweight, anti-skating adjustment, and lever lift with height adjustment
