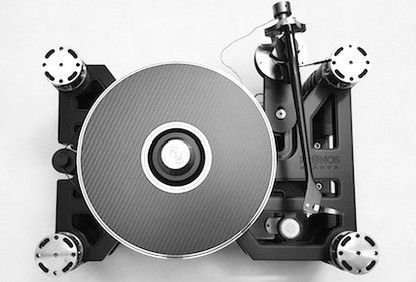

Kronos Audio Sparta

The Kronos Audio Sparta turntable is a high-end vinyl playback system known for its innovative two-platter design and exceptional sound quality.

Key Features

• Dual Platters: The Sparta features two counter-rotating platters, a signature technology of Kronos Audio, designed to reduce vibrations and improve sound quality by offsetting torsional forces.

• Rotational Speed: Supports both 33.3 rpm and 45 rpm playback speeds.

• Motor System: Utilizes two 2432 precious metal brushes DC motors, each housed in Delrin capped aluminum tubes.

• Power Supply: Features a dual-channel pure class A linear DC power supply with CPU-controlled DC voltage output ranging from 0 to 5 volts.

• Platter Construction: The platters are made of composite compressed phenolic/aluminum materials, balanced for optimal performance.

• Tonearm Compatibility: Accommodates tonearms ranging from 9 to 10.5 inches in length.

• Speed Guidance System: Employs a continuous open-loop feedback system with user-adjustable speed settings.

• Main Bearings: Dual hydraulic isolated inverted sleeve and ball bearings are used for smooth operation.

• Dimensions and Weight: Measures 51 cm (W) x 36 cm (D) x 28 cm (H) and weighs approximately 32 kg.

Technical Specifications

• AC Voltage Input: Factory-set for either 110V or 220V.

• DC Transmission: Uses pico 3-pin and 4-pin cables for data and power transmission.

• Drive System: Each platter is driven by a silicone/Viton 2.3 string belt.

• Lubricant: 8 ml of variable viscosity synthetic oil is used, with a service interval of 5 years.

• Suspension: Features a full floating top suspension with 317 o-rings made from a proprietary Viton/silicone mix
