Melco Audio 3560

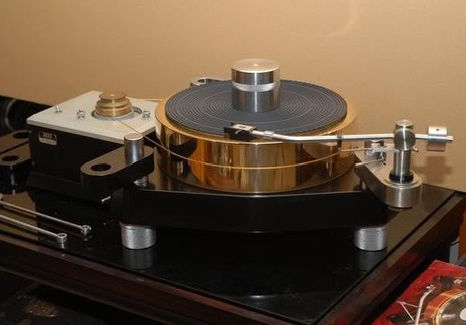

The Melco Audio 3560 turntable is a rare and highly regarded analog playback system from the past.

Design and Build

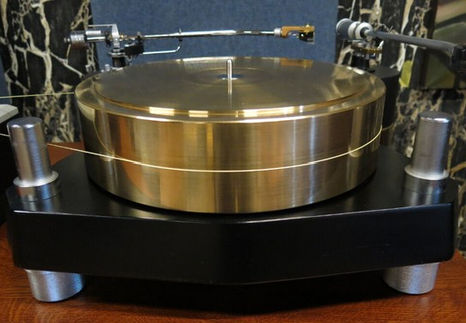

• Base and Platter: The Melco 3560 features a substantial base and a platter made of gunmetal, weighing approximately 35 kg. Some versions include an additional 6 kg brass top plate for added mass and stability.

• Dimensions and Weight: The turntable is large and heavy, requiring significant space and support. It weighs over 90 kg with additional components like arm boards.

Motor and Drive System

• Motor Unit: The motor is mounted on its own isolated support shelf, which helps in reducing vibrations and noise. This setup is crucial for achieving optimal performance.

• Drive Type: The Melco 3560 is noted for using a thread drive system, similar to those found in other high-end turntables like the Kondo Ginga and SPEC GMP-8000EX.

Tonearm and Cartridge

• Tonearm Compatibility: The turntable has been used with high-end tonearms such as the Fidelity Research 64 and 66-S. The arm boards are bespoke, made from 316 stainless steel, and designed to accommodate these tonearms.

• Cartridge: Initially fitted with a Fidelity Research 64 cartridge, later upgraded to the Fidelity Research 66-S, which is known for its high-quality sound reproduction.

Connectivity and Features

• Outputs: The turntable would typically output to a phono preamplifier via RCA connectors, though specific details on connectivity are limited.

• Setup Requirements: The Melco 3560 requires careful setup to optimize its performance, including precise motor alignment and vibration isolation.

Additional Features

• Rarity and Legacy: The Melco 3560 is extremely rare, with only two units exported to Europe, making it a legendary piece among audiophiles.

• Sound Quality: Known for delivering exceptional sound quality with precise tracking and minimal noise, thanks to its innovative design and high-quality components
