Turntable Details
Drive
Belt
Motor
AC
Wow & Flutter %
Rumble [dB]
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
3006.0
Total Weight [kg]
Tonearm
Year Built
28.00
1987
Platter Weight [kg]
5.00
Plinth Material
Price
Additional information
Key Features
Drive System: Belt-drive.
Motor: 8-pole hysteresis synchronous motor driven by a CR oscillator and BTL amplifier for precise speed control.
Speeds: 33.33 and 45 rpm.
Speed Adjustment Range: ±4% fine adjustment.
Platter: 306 mm aluminum die-cast platter weighing 5 kg.
Wow and Flutter: Not specified, but typically less than 0.025% for similar high-end models.
Signal-to-Noise Ratio: Not specified, but generally high for a turntable of this caliber.
Tonearm: Compatible with various tonearms, including the SME 3009; the armboard is fixed and designed for SME mounts.
Dimensions: 463 x 377 x 165 mm (WHD).
Weight: 28 kg (turntable), approximately 35 kg including the power supply.
Years of Manufacture: Around 1987 to 1989.
Made in: Japan.
Original Price: Not specified, but available for purchase today at prices around €3,800.
Power Supply: External power supply operating at AC 100V, 50/60 Hz; it switches from 100V to 50V after 15 seconds of operation.
Power Consumption: 34 watts.
Additional Details

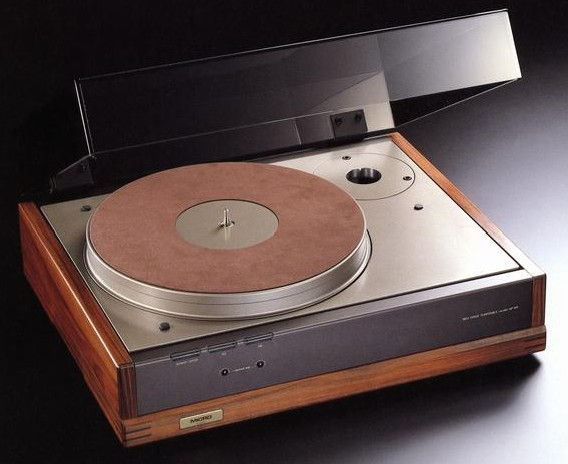

The AP-M1 is a high-end belt-drive turntable known for its precise speed control and robust build quality.
It features a wooden case with side panels made from Brazilian rosewood to reduce vibration and enhance aesthetics.
The turntable includes an off-board power supply, which helps to minimize electrical noise and improve sound quality.
The AP-M1 is highly regarded for its sound quality and is often praised for its compatibility with high-end tonearms.
It is considered a rare and sought-after model among audiophiles, particularly for its performance and durability.
