Turntable Details
Drive
Direct
Motor
DC
Wow & Flutter %
0.028
Rumble [dB]
-62
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
320.0
Total Weight [kg]
Tonearm
Year Built
11.50
S-shaped
Platter Weight [kg]
1.50
Plinth Material
Price
Additional information
Key Features
Drive System: Direct drive with an improved torque FG servo motor, providing advanced drive characteristics.
Motor: DC servo motor with an integrated tachogenerator for precise speed control.
Speeds: 33.33 and 45 rpm with a fine speed adjustment range of ±6%.
Platter: 32 cm die-cast aluminum platter weighing 1.5 kg.
Wow and Flutter: Less than 0.028%.
Signal-to-Noise Ratio: More than 62 dB.
Tonearm: MA-505 dynamic balance type tonearm, known for its low tracking force and durable design.
Effective Length: 237 mm.
Overhang: 15 mm.
Offset Angle: 21 degrees.
Cartridge Weight Range: 4 to 10 g.Dimensions: 466 x 142 x 342 mm (WHD).
Weight: Approximately 8.2 kg.
Power Supply: Operates at various voltages, including 100V and 120V, depending on the region.
Additional Details

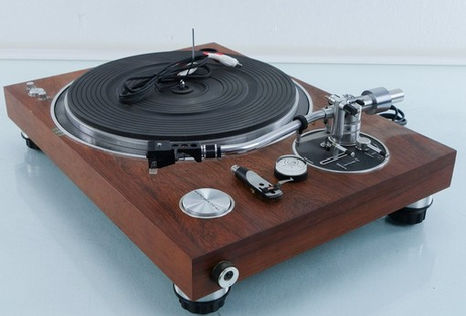

The DD-40 is a vintage direct-drive turntable known for its robust build quality and precise speed control.
It features a solid base with a Palisander-Rose finished pressed-board and large shock absorbers to minimize acoustic feedback
1.The MA-505 tonearm is dynamically balanced, ensuring low tracking force and lasting quality without deterioration
12.The turntable is highly regarded for its sound quality and reliability, making it a sought-after model among audiophiles.
