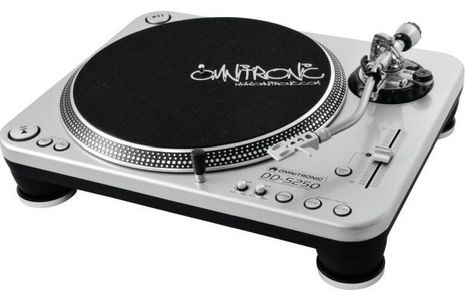

Turntable Details
Drive
Direct
Motor
DC
Wow & Flutter %
0.1
Rumble [dB]
-60
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
332.0
Total Weight [kg]
Tonearm
Year Built
11.00
S-shaped
Platter Weight [kg]
1.10
Plinth Material
Price
Additional information
Drive Type: Quartz-controlled direct drive with a brushless DC motor.
Speeds: Supports three preset speeds: 33 1/3 RPM, 45 RPM, and 78 RPM.
Speed Control: Pitch adjustment is switchable from ±10% to ±20% and ±50%.
Rotation Direction: Forwards and backwards.
Tone Arm: S-shaped with Cardan's suspension, featuring an adjustable height of 8-10.5 mm and overhang of 15 mm.
Stylus Pressure: Adjustable from 2-5 g.
Anti-Skating Range: 0-3 g.
Platter: Outer diameter of 332 mm, weighing 1,400 g.
Start/Stop System: Electric brake with adjustable start and stop times (0.2-6 seconds).
LED Illumination: Separate LED target lamp for improved visibility.
Connectors: Detachable power and RCA cables for easy installation.
Technical Specifications
Power Supply: 230 V AC, 50 Hz.
Power Consumption: 13 W (some sources list 15 W).
Frequency Range: 20 Hz to 20 kHz, ±1 dB.
Signal-to-Noise Ratio: >60 dB (DIN B).
Channel Separation: >20 dB.
Wow and Flutter: <0.1% WRMS at 33 RPM.
Rumble: 60 dB DIN B.
Dimensions: Width: 45 cm, Depth: 35.3 cm, Height: 15.6 cm.
Weight: 11 kg.
Additional Features
Quartz Lock: A button to return to the preset standard speed.
Reverse Function: Allows for reverse playback.
Shock-Absorbing Feet: For reduced vibration.
Detachable Cables: Facilitates easy case mounting and maintenance.
