Turntable Details
Drive
Belt
Motor
DC
Wow & Flutter %
0.045
Rumble [dB]
-66
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
310.0
Total Weight [kg]
Tonearm
Year Built
3.70
Straight
Platter Weight [kg]
Plinth Material
Price
Additional information

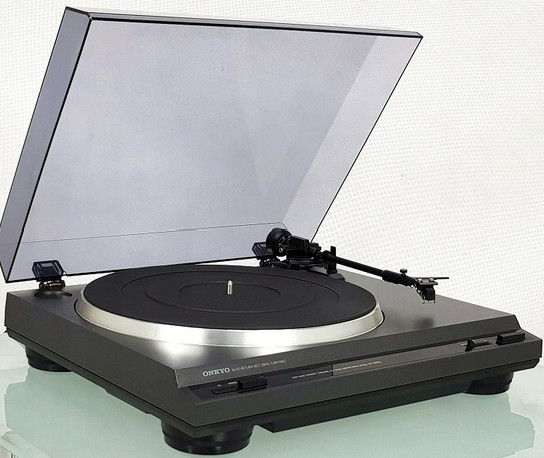

Type: Two-speed, semi-automatic belt-drive turntable with an integrated auto-return tonearm system.
Drive Method: Belt drive using a DC servo motor.
Platter: 310mm aluminum die-cast platter.
Speeds: Supports 33 1/3 and 45 RPM playback.
Wow and Flutter: 0.045% WRMS.
Signal to Noise Ratio: 66 dB.
Tonearm:
Type: Static-balanced straight-type pipe arm.
Effective Length: 210 mm.
Overhang: 13 mm.
Cartridge: Moving magnet OC-74M.
Tracking Force: 2 g.Frequency Response: 20 Hz to 20 kHz.
Output Voltage: 2.5 mV.
Replacement Stylus: DN-74ST.
Dimensions: 418 x 132 x 374 mm (W x H x D).
Weight: 3.7 kg.
Years of Manufacture: Produced from 1989 to 1992 in Japan.
Additional Features:
Auto-return mechanism for convenient playback.
Smooth gliding tonearm lift for record protection.
Exchangeable headshell with ADC connection.
Requires an external phono preamp for amplification.
