Turntable Details
Drive
Belt
Motor
DC
Wow & Flutter %
0.1
Rumble [dB]
-80
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
18
Straight
Platter Weight [kg]
Plinth Material
Price
Additional information

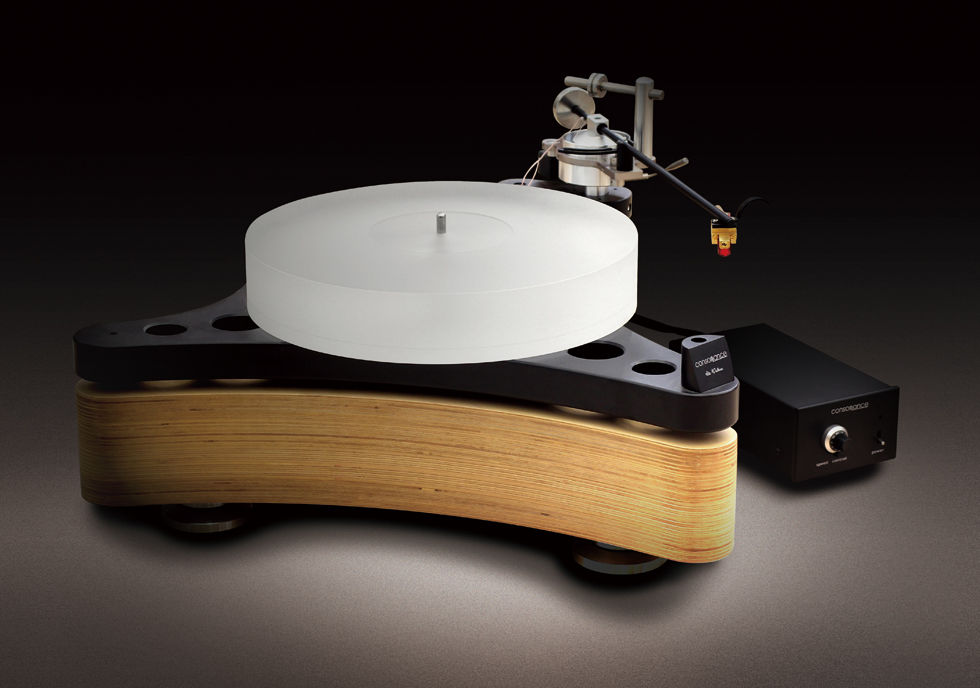

Type: 2-speed, manual belt-driven turntable.
Plinth: Constructed from a combination of thick wood (90mm) and aluminum, providing a stable base for the turntable. The wooden part helps absorb vibrations, while the aluminum subchassis supports up to three tonearms.
Platter: 55mm thick acrylic platter, designed to reduce resonance and provide a stable platform for record playback.
Motor: DC motor located externally to minimize vibration, with a separate power supply for precise speed control.
Speeds: Supports 33 1/3 and 45 RPM playback. Speed adjustment is achieved using a strobe disc and a variable speed controller.
Wow and Flutter: Less than 0.1%.
Rumble: Greater than 80 dB down.
Speed Accuracy: Within 0.01%.
Tonearm: Compatible with various tonearms, including the T988 and LT1S models. The T988 is a unipivot design, while the LT1S uses air bearings for tangential tracking.
Bearing: Inverted fixed spindle with a polished ceramic ball on a Teflon thrust plate.
Dimensions: Approximately 500 x 250 x 500 mm (WxHxD).
Weight: 18 kg.
Additional Features:
Adjustable feet for leveling and vibration isolation.
External motor housing to reduce vibration.
Compatible with multiple tonearms, allowing users to install up to three arms simultaneously.
High precision speed controller for accurate speed adjustment.
