Turntable Details
Drive
Direct
Motor
AC
Wow & Flutter %
0.03
Rumble [dB]
-75
Speed
33, 45
Dimensions [mm]
Platter Material
Die-cast Al
Platter Diameter [mm]
300
Total Weight [kg]
Tonearm
Year Built
Platter Weight [kg]
1.1
Plinth Material
Price
Additional information
The PBN-DP3 is based on the Denon DP3000 model.
Type: Direct drive turntable system.
Drive Method: Servo-controlled direct drive with an AC servo motor operating at 99.9% accurate speed.
Platter: 300mm, aluminum die-cast, weighing 1.1 kg.
Speeds: Supports 33.33 and 45 RPM playback.
Speed Variation Range: More than 3% via a dial on the control panel.
Starting Characteristics: Less than ½ turn to reach nominal speed.
Speed Deviation: Less than 0.1%.
Wow and Flutter: Less than 0.03% WRMS.
Signal to Noise Ratio: More than 75 dB.
Power Consumption: 14W.
Tonearm: Compatible with various tonearms, including the Jelco SA750 (B) tonearm.

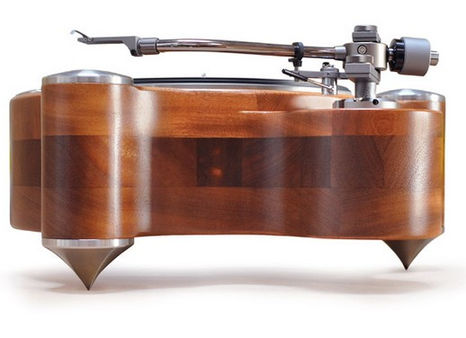

Suspension System: Features a hardwood plinth with three steel spiked feet to eliminate vibration.
Dimensions and Weight: Not specified for the PBN-DP3, but the PBN-DP80 Pro measures 19.25” W x 15.25” D by 7.75” H and weighs approximately 55 lbs.
Power Supply: External power supply with advanced electronics.
Additional Features:
Customizable with different tonearms and finishes.
Available in various hardwood plinths, including cherry, maple, walnut, and oak.
Compatible with multiple cartridges for different sound preferences
