Turntable Details
Drive
Belt
Motor
Wow & Flutter %
Rumble [dB]
Speed
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
12
Platter Weight [kg]
3
Plinth Material
Price
Additional information

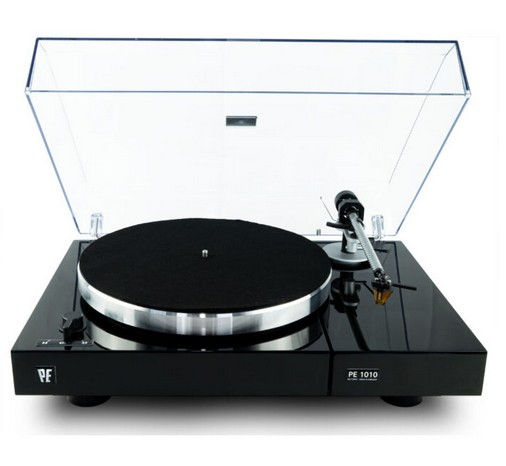

Type: Manually operated sub-chassis belt drive turntable.
Drive Method: Belt drive system using a synchronous motor and an aluminum subplatter.
Platter: Made from damped aluminum, weighing 3 kg and measuring 24 mm in thickness.
Speeds: Supports 33 1/3 and 45 RPM playback with electronic speed selection.
Tonearm: Features the 9-inch in-house developed tonearm PE TO 2016 with a carbon fiber arm tube and biaxial bearing.
Effective Length: 232.8 mm.
Overhang: 17.8 mm.Cartridge: Typically supplied with the Ortofon 2M Blue moving-magnet (MM) cartridge, though some configurations may offer the Ortofon 2M Bronze.
Suspension System: The sub-chassis is spring-loaded and damped, resting on Sorbothane-damped, height-adjustable feet for optimal isolation from external vibrations.
Dimensions: 470 mm (W) x 340 mm (D) x 175 mm (H) including the dust cover.
Weight: Approximately 12 kg to 14 kg.
Power Supply: External power supply.
Additional Features:
Solid split chassis with noble wood and lacquer surfaces.
Offers XLR and RCA outputs for balanced and unbalanced connections.
Available in various finishes, including black, bird’s eye maple veneer, walnut veneer, and rosewood.
