Turntable Details
Drive
Belt
Motor
AC
Wow & Flutter %
0.08
Rumble [dB]
-70
Speed
33, 45
Dimensions [mm]
Platter Material
Platter Diameter [mm]
Total Weight [kg]
Tonearm
Year Built
9.40
Straight
2003
Platter Weight [kg]
Plinth Material
MDF
Price
£1,250
Additional information

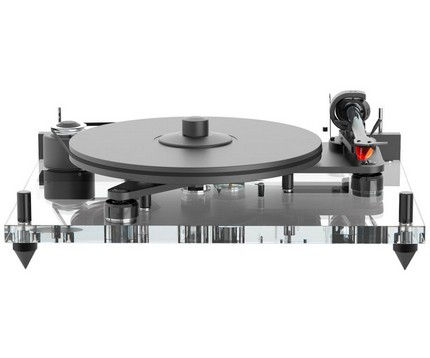

The Pro-Ject Perspective Rohmann turntable, specifically the "Final Edition," represents a high-end design with advanced features, combining precision engineering with aesthetic appeal. Below are its detailed technical specifications:
Key Features
Drive System: Belt drive with electronic speed control for precise rotation.
Speeds: Supports 33 and 45 RPM, with electronic speed change functionality.
Platter: 300 mm die-cast aluminum platter with TPE (Thermoplastic Elastomer) damping for vibration reduction.
Platter Bearing: High-precision stainless steel axle in a bronze bushing for smooth and stable performance.
Tonearm
Type: 9” one-piece carbon fiber tonearm, offering rigidity and lightweight construction for improved tracking accuracy.
Effective Length: 230 mm.
Overhang: 18 mm.
Effective Mass: 8.5 g.
Adjustability:
Fully adjustable azimuth and vertical tracking angle (VTA).
Anti-skating mechanism included.
Cartridge
Pre-fitted with the premium Ortofon 2M Bronze cartridge, featuring a Fine Line stylus for high-frequency detail retrieval and excellent groove tracking.
Performance Metrics
Wow & Flutter: ±0.12% at 33 RPM; ±0.11% at 45 RPM.
Speed Drift: ±0.25% at 33 RPM; ±0.23% at 45 RPM.
Signal-to-Noise Ratio: -70 dB, ensuring low background noise.
Build and Design
Chassis: Transparent acrylic plinth with a sub-chassis design suspended by three adjustable springs to isolate vibrations from the motor and external sources.
Feet: Height-adjustable aluminum spike feet to minimize vibration interference.
Dimensions:
Closed dust cover: 462 x 175 x 360 mm (W x H x D).
Open dust cover: 462 x 415 x 455 mm (W x H x D).Weight: Net weight of 8 kg for stability and resonance control.
Accessories
Includes:
Dust cover.
Premium semi-symmetrical phono cable with gold-plated RCA connectors.
Record clamp for improved record stability during playback.
Power Consumption
Power supply: Outboard universal power supply (15V DC / 0.8A).
Consumption: 5W during operation; 0.3W in standby mode.
